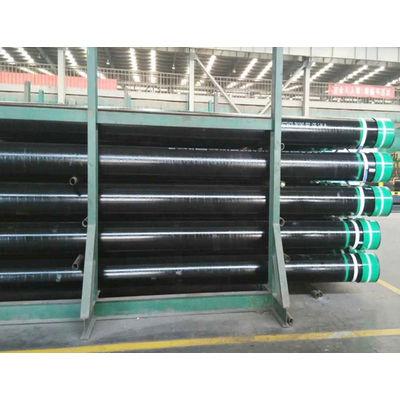

Xinyue - Seamless Casing Steel Pipe
SMLS pipe refers to seamless steel pipe, which is made of a whole piece of metal and has no joints on the surface. According to the production method, seamless pipe is divided into hot rolled pipe, cold rolled pipe, cold drawn pipe, extrusion pipe, pipe jacking and so on.
According to different uses, there are thick wall seamless steel pipes and thin wall seamless steel pipes.
Seamless steel pipe is mainly used for petroleum geological drilling pipe, petrochemical cracking pipe, boiler furnace pipe, bearing pipe and high-precision structural steel pipe for automobiles, tractors and aviation.
It is divided into two categories: general purpose (for water and gas pipelines and structural parts, mechanical parts) and special purpose (for boilers, geological exploration, bearings, acid resistance, etc.)
Description
- Usage: Applicable to the general structure, mechanical structure, water wall panel, economizer, super heater, boiler and heat exchanger with seamless steel tubes, and to transport liquid, gas, oil etc.
- Certificate: ISO 9001-2008
- Out Diameter: 10.3-914.4mm
- Wall Thickness: 1.73-40mm
- Length: Random Length, Fixed Length, SRL, DRL
Details
- Standard: API 5L, API 5CT, ASTM A106/A53, ASTM A519, JIS G 3441, JIS G3444,JIS G3445 DIN 2391, EN10305, EN10210, ASME SA106, SA192, SA210, SA213,SA335, DIN17175, ASTM A179…
- Steel Grade
- API 5L: API 5L: GR B, X42, X46, X56, X60, X65, X70
- ASTM A53/A106: GR A, GR B, GR CASME SA106: GR.A, GR.B, GR.CASME
- SA192:
- SA192ASME SA209M: T1, T1a
- ASTM A335: P1, P2, P5, P9, P11, P22, P23
- ASTM A333: Gr.1, Gr.3, Gr.4, Gr.6, Gr.7, Gr.8, Gr.9, Gr.10, Gr.11
- Heat Treatment
- Annealed (Bright Annealed, Spheroidize Annealed), Normalized, Stress Relieved, Cold Finished, Quenched and Tempered
- Delivery Condition: BKS, NBK, BK, BKW, GBK(+A), NBK(+N), BK(+C)
- Mill Test Certificate: EN10204 3.1
