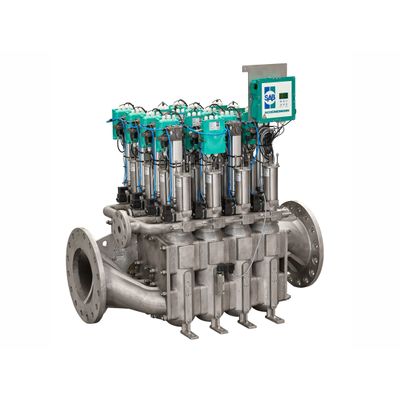

Georg-Schünemann - Model F490 -Self-Cleaning Automatic Filter
The self-cleaning Automatic Filter F490 is pneumatically operated and used for the separation of solids in various different media like seawater, river water or process water. The Filter ensures reliable and continuous filtration in a variety of applications like cooling water cycles or water treatment plants. The filter can operate at very low pressures of only ≥ 0,7 bar and is characterized by an unmatched low backflush rate, a compact design and near maintenance-free operation. The revolutionary MULTI X design utilizes the advanced Multi-Bernoulli cleaning technology. This technology was invented by Georg Schünemann and combines multiple strainers in one filter housing.
GRADE OF FILTRATION
The MULTI X ensures the safe protection of our customer’s applications with a consistently high filtration quality down to 40 μm. The proven Multi-Bernoulli technology warrants a continues and effective filtration even at low operating pressures starting from only 0.7 bar.
BACKFLUSH RATE
The innovative multi-strainer design allows exceptionally low backflush rates. Less than 1% of the total volume flow are possible and underline the unmatched efficiency of the MULTI X. While maximizing the clean water flow the waste water flow is reduced to a minimum. Possible costs for the storage or disposal of the backflush can be reduced significantly.
COMPACT DESIGN
With its smart and modular design, the MULTI X offers a considerably smaller footprint saving up to 40% of space compared to conventional filter solutions. This compact design based on smaller and standardized components, reduces the required maintenance space and efforts significantly. The flanges are arranged in-line to ensure an easy piping integration without any height offset.
- In- / outlet: DN100 – DN800 (DIN, ANSI)
- Housing Material: GGG-40, 1.4581, 1.4557
- Design pressure: 10 bar
- Volume flow: 50 to 8000 m3/h
- Strainer insert: Slot wedge wire strainer, Basket strainer
- Grade of filtration: ≥ 40 µm (Slot wedge wire), ≥ 1 mm (basket)
- Design code and guidelines: AD2000/ EN13445
- ASME VIII Div.1: PED/ EAC
