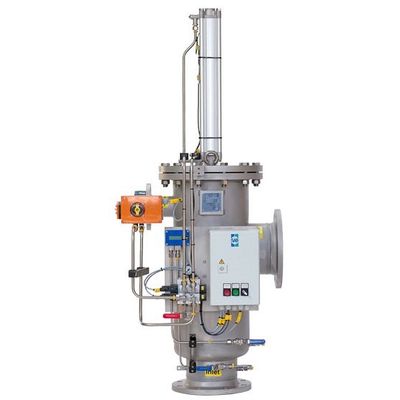

Georg-Schunemann - Model F450 (E) -Self-Cleaning Automatic Filter
The self-cleaning Automatic Filter F450 (E) is pneumatically or electrically operated and used for the separation of solids in various different media like seawater, river water or process water. The Filter ensures reliable and continuous filtration in a variety of applications like cooling water cycles or water treatment plants. The filter can operate at very low pressures of only ≥ 0,7 bar and is characterized by an unmatched low pressure loss, a compact design and near maintenance-free operation. Due to the flexible combination of different design solutions and materials, the F450 can be easily adapted to the customer’s specific requirements.
Reliable filtration by using the Bernoulli principle
CUSTOMIZED DESIGNS
The F450 can be adopted to all customer requirements and offers a broad range of materials suitable for almost every application. The design allows flexible nozzle positions which ensures a simple integration into the piping. Furthermore, the F450 can be designed according to many national and international codes and regulations, among others, EN13455, ASME, AD2000, EAC and ATEX.
EFFICIENT CLEANING
The F450 ensures the safe protection of our customer’s applications with a consistently high filtration quality down to 150 μm. The proven Bernoulli technology warrants continuous and effective filtration even at low operating pressures starting from only 0.7 bar.
SMART CONTROL
Georg Schünemann offers a wide range of Control units. From stand control units up to customized control units specifically designed for the individual application. Based on the local requirements the LCP can be equipped with different communication interfaces like Modbus, Profibus or Ethernet. This enables a safe LCP to PLC communication and to ensures a convenient remote monitoring of the filter system.
- In- / outlet : DN65 – DN600 (DIN, ANSI)
- Housing Material :
- Stainless steel
- Carbon steel rubber-coated
- GRP
- Design pressure : 6 bar, 10 bar
- Volume flow : 24 to 4400 m3/h
- Strainer insert:
- Slot wedge wire strainer
- Basket strainer
- Grade of filtration:
- ≥ 150 µm (slot wedge wire)
- ≥ 1 mm (basket)
- Design code and guidelines:
- AD2000/ EN13445
- ASME VIII Div.1
- PED/ EAC
- In- / outlet: DN65 – DN600 (DIN, ANSI)
- Housing Material: Stainless steel, Carbon steel rubber-coated, GRP
- Design pressure: 6 bar, 10 bar
- Volume flow: 24 to 4400 m3/h
- Strainer insert: Slot wedge wire strainer, Basket strainer
- Grade of filtration: ≥ 150 µm (slot wedge wire), ≥ 1 mm (basket)
- Design code and guidelines: AD2000/ EN13445
- ASME VIII Div.1: PED/ EAC
