AWP - Model DynaDisc -Self-Regulation Disk Filter

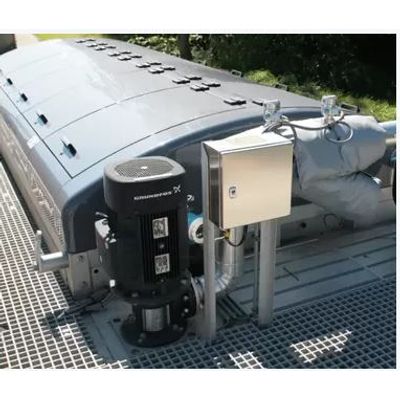

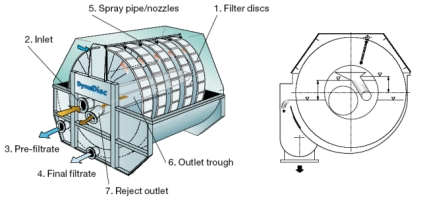

The DynaDisc consists of one or several rotating filter discs (1) permanently mounted on a central shaft. The drive system is on the opposite side to the pipe connections. The liquid is admitted into the filter through the inlet (2) and flows into the filter discs through openings in the shaft. The liquid flow is induced by the hydrostatic pressure due to the fact that the water surface of the incoming liquid inside the filter rotor is higher than the surface of the filtrate outside the rotor. If required, the filtrate discharged can be divided by means of a patented device into two phases, i.e. the pre-filtrate (3) and the final filtrate (4).

During the filtration process, a filter cake is built up on the inside of the filter element. It is the filter cake and not the filter fabric that serves as the filter medium for the final filtrate, which is the reason for the high efficiency. The DynaDisc can achieve filtration efficiencies of up to 98%. Spray pipes and nozzles (5) are provided to remove the filter cake, which then drops down into the coarse reject outlet trough (6) and is discharged from the filter through the reject outlet (7). Operation of both the filter disc drive and the spraying process can be either continuous or controlled by automatic level control system.
