Model SS-037-022-500-P -Semiconductor Strain Gages

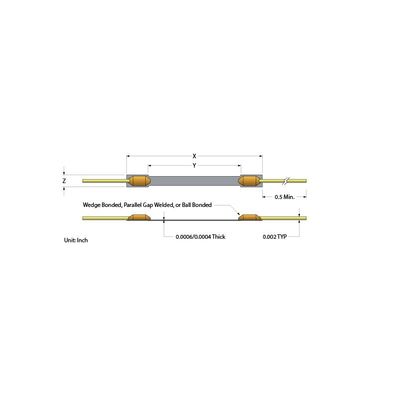

Standard Semiconductor Strain Gages are made from "P" doped bulk silicon. They have no P/N junction. The Silicon is etched to shape, eliminating the potential for molecular dislocation or cracks, thereby optimizing performance. Part Number: SS-037-022-500-P. Dimension Z: 0.009". Lead Type: Ball Bond AU 1.5 mil. Thickness: 0.0004". Resistance @ 78 deg F: 540 ± 50 Ohms. Gage Factor: 150 + 10. TCR*: 17%
