Model SS-047-025-500-PU -Semiconductor Strain Gages

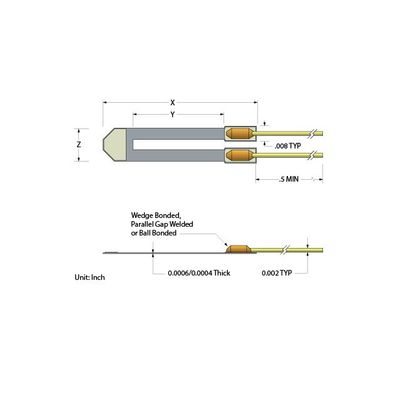

Part Number: SS-047-025-500-PU . Dimension Z: 0.016”. Lead Type: Welded AU 2.0 mil. Thickness: 0.0004". Resistance @ 78 deg F: 540 ± 50 Ohms. Gage Factor: 140 ± 10. TCR*: -13%. TCR*: 16%.  Standard Semiconductor Strain Gages are made from "P" doped bulk silicon. They have no P/N junction. The Silicon is etched to shape, eliminating the potential for molecular dislocation or cracks, thereby optimizing performance.
