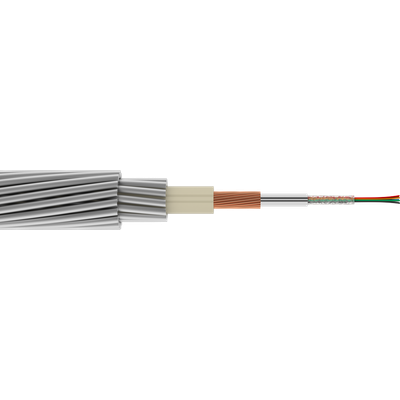

Model DeepWire -Sensing Cable Stranded Wires
FromWires&Bytes
Application: Retrievable downhole cable. Distributed downhole monitoring (DTS, DAS). Well logging. Signal transmission from downhole tools. Power supply to downhole tools. Wireline operation. Steam Assisted Gravity Drainage (SAGD). Coiled tubing.
Most popular related searches
Temperature rating
+90°C
+150°C
+180°C
+200°C
+260°C
+300°C: +194°F
+302°F
+356°F
+392°F
+500°F
+572°F
Cable diameter: 4.5–18.5 mm 0.177–0.728 in
Copper conductor section: 0.75-3.0 mm2 18 AWG - 13 AWG
Fiber count: up to 12
Minimum bending radius (no load): x 20D
Minimum suggested sheave diameter: x 55D
Design options
- Single or double layer steel tube
- Gel-filled or gel-free FIMT
- Copper conductor
- Corrosion-resistant wire
Materials
- Optical fibers: SM or MM, coating depends on temperature rating
- Tube: stainless steel 316L, Incoloy, Inconel
- Armor wire: GIPS (galvanized improved plowed steel) or GEIPS (galvanized extra improved plowed steel), stainless steel or specialty Ni-based alloys for higher corrosion resistance
- Resistant to extreme temperature
- Hydrogen-resistant fiber
- High strength in compact design
