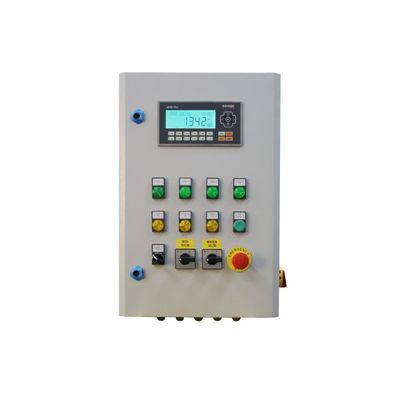

Model Baykon BX30D Plus -Sensitive and Multifunctional Weighing Indicator

Weighing, labeling, weight control, sorting, automatic filling, peak holding and dynamic weighing applications are the standard operating modes of the BX30 Plus & BX30D Plus Plus terminal. Thanks to 3 keys that can be programmed according to the applications, it provides practical, fast and error-free operation. It has 4 different memories, each with 500 recording memories; ID1, ID2, numerical tare, limit values for the product. When the product is selected, it can be programmed to automatically assign other memory records of the product.

It has very important advanced options such as BX30 Plus & BX30D Plus indicator, eCAL (electronic calibration) and correction of calibration settings of loaded tanks. RS232C, RS485, RS422, USB and Ethernet TCP/IP communication ports are standard, Analog output for all types of PLC/Scada communication, EtherNet/IP, Profibus, Profinet, Modbus RTU, Modbus TCP, CANopen, EtherCAT, CC-Link, Powerlink and 4 optical isolated inputs, 5 relay contact outputs Digital I/O
