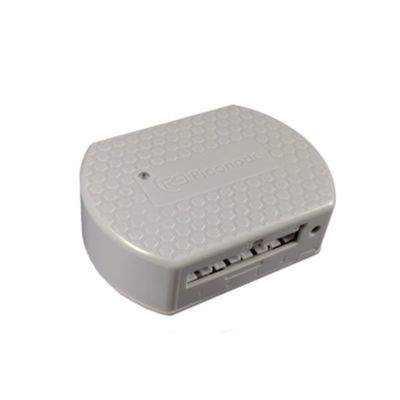

R9 Technology - Model SN400 -Sensor Node

Some typical applications include:

• Temperature monitoring
• Door counter
• Tank or bulk container level monitoring
• Proximity detection
• Vibration monitor
• Humidity sensor
• Ambient light sensor
• Flow measurement
• Switch actuation

• Wireless 915/868 MHz ISM band connectivity for sensor data transfer
• Software-defined radio (SDR) chip-set
• AES128 encryption providing secure sensor node communication
• Provides local and remote digital temperature sensing
  • Four channels:  -30°C to 85°C ±0.6°C remote sensing temperature range (wired probe)
  • Single channel:  -20°C to 45°C local ambient temperature range (limited by batteries on module)
• Supports multiple digital probe types, including serial one wire, pulse counting, GPIO (one bit)
• External reset button
• External pairing button
• Small (62.8 mm height x 72.9 mm width x 21.1 mm thickness) ABS plastic enclosure
  • Integrated magnet system for attachment to metal surfaces, including refrigerator and freezer.
  • Mounting flange for use with screw-mount applications.
• Bi-color LED indicator (red/green)
• Built-in system sleep timer for lowest possible power consumption, and longest possible battery life
• 2x AAA alkaline battery power. (2+ years of battery life @ 15 minute reporting intervals)
• DC jack, allows for external power input (0.65 mm, 3.0V).  Note this will not support operation during a power outage.
• -20°C to 45°C device temperature operating range (with batteries on module)
• Optional, external antenna can be provision using MMCX connector
• Optional, wired ports can be configured for 0V-10V analog sensor input
• Optional, external DC power supply
• Optional, 868 MHz internal antenna for European markets

Options require minimum purchase quantity.

• Width: 72.9 mm
• Height: 62.8mm
• Thickness: 21.1 mm
• Weight: 2.1 oz
