NewTek - Model HAR Series -Sensor Selector

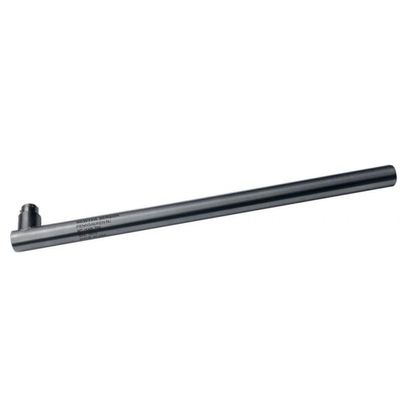

The NewTek HAR Series sensors are rugged hermetically sealed AC LVDTs with excellent linearity, high sensitivity and infinite resolution. These sensors are constructed of 0.750 inch diameter stainless steel and manufactured for general industrial use. Electrical connection is made through a radially mounted connector, resulting in a reduced housing length. Designed for a wide range of position measurement applications, they are available in ranges of ±0.05 inch (1.27mm) to ±10 inches (250mm). The HAR Series windings are potted inside the housing with a 2 component epoxy, providing excellent protection against hostile environments.
Most popular related searches
shock and vibration
material testing
materials testing system
packaging testing system
automatic test equipment
packaging material testing
packaging testing
- Welded 3/4 inch hermetically sealed steel housing
- Radially mounted connector
- Measurement ranges from ± 0.05 to ± 10 inches
- Linearity ±0.15% of Full Range Typical
- Shock and vibration tolerant
- Wide operating temperature range (-65°F to 275°F)
- Standard and custom models available
- Factory Automation
- Materials Testing
- Packaging Equipment
- Valve Position Sensing
- Corrosive Environments
Electrical Specifications
- Input Voltage: 3 Vrms (Nominal)
- Input Frequency: 400Hz to 10KHz
- Linearity: < ± 0.15% Full Range Typical
- Extended Operating Range: 1.5 X Linear Range
- Null Voltage: ± 0.5% Full Range
- Hysteresis: <0.01% of Full Range Typical
- Repeatability: <0.01% of Full Range Typical
Environmental Specifications
- Operating Temperature: -65° F to 275° F (-55° C to 135° C)
- Thermal Coefficient: <-0.01%/°F (< -0.02%/°C) of Full Range
- Humidity: 90% R.H., 240 Hours
- Shock Survival: 1000 g, 11 ms
- Vibration: 20 g to 2 KHz
Material Specifications
- Housing: Corrosion-resistant nickel-iron alloy
- Core: Hi-permeability nickel-iron alloy
- Magnet Wire: Film insulated copper
- Connector: PT02A-10- 6P
