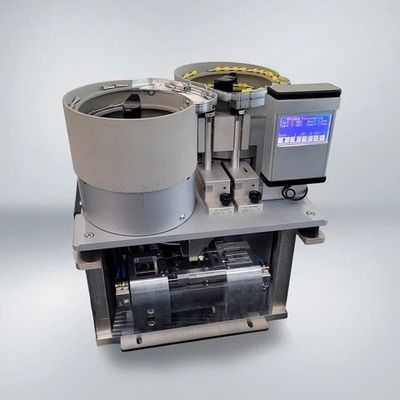

Komax - Model CM 04 Duo -Sequenceable Ferrule Wire Processing Module
FromKomax AG
The sequenceable ferrule module CM04 Duo crimps up to two loose ferrules with large cross-sections of 4 and 6 mm² on pre-stripped wires with a Quadro crimp design.
More about this product— External link
Most popular related searches
CM 04 Duo
Metric
- Wire cross section min.: 4 mm²
- Wire cross section max.: 6 mm²
- Operating pressure min.: 5 bar
- Operating pressure max.: 6 bar
- Weight: 88.2 lb
- Dimensions without rollers / width: 270 mm
- Dimensions without rollers / height: 440 mm
- Dimensions without rollers / depth: 510 mm
- Crimp design: Quadro crimp design
- Min. sleeve length: 8 mm
- Max. sleeve length: 12 mm
- Sleeve length (comment): Crimp length up to 18 mm possible with trapezoidal crimp design
- Ferrules: Z+F loose ferrules (bulk material)
Imperial
- Wire cross section min.: AWG12
- Wire cross section max.: AWG10
- Operating pressure min.: 72 psi
- Operating pressure max.: 87 psi
- Dimensions without rollers / width: 10.6 in
- Dimensions without rollers / height: 17.3 in
- Dimensions without rollers / depth: 20.1 in
- Crimp design: Quadro crimp design
- Min. sleeve length: 0.31 in
- Max. sleeve length: 0.47 in
