Model CF Series -Sequential Batching Reactor (SBR) Technology
CROMAFLOW’s CF Tanks represent the latest in Sequential Batching Reactor (SBR) technology. With over 10,000 installations worldwide, CROMAFLOW treatment systems have consistently surpassed US EPA standards for secondary wastewater treatment of below 30 mg/l for both TSS and BOD5. From single family homes to small communities, CROMAFLOW offers 10 treatment processes from 500gpd to 15,000gpd. These modular units can be combined to treat wastewater flows of up to 200,000gpd. CF Series Tanks are the starting point for any CROMAFLOW Wastewater Treatment Solution.

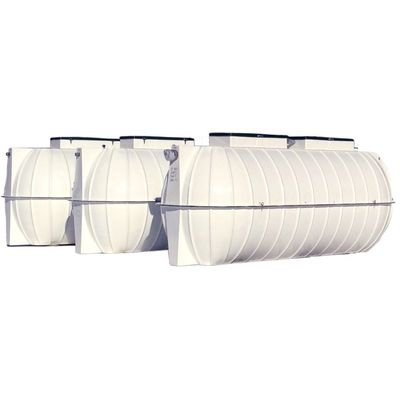

The CF Series of Wastewater Treatment tanks are constructed with a fiberglass tank, noncorrosive internal parts, PVC schedule 40 and/or schedule 80 piping, different tanks will have different pumps as well options for the electrical.
FILL/ AERATION
Flow enters the Solids Retention Section (A) which is separated by a stainless steel trash screen. Inorganic solids are retained behind this screen. Organic solids are broken by turbulence created via mixed liquor being forced through the screen by submersible aeration/mixing pumps. This eliminates the need for mechanical comminution
AERATION
Liquids and broken down organic solids pass through the screen into the continuous aeration/mixing section (B). Air and mixing are provided by submersible pumps with a venturi system that receives air through intake pipes from the atmosphere.
NUTRIENT REMOVAL CYCLE
The PLC/HMI controls anoxic periods during the treatment cycle to enhance biological nutrient removal during a settlement period in compartments B and C. The system allows the operator the ease to make adjustments to fine tune this process.
TRANSFER/ SETTLEMENT
Mixed liquor is transferred by pumping to the clarifier section (C). The transfer cycle fills the clarifier with the excess liquid spilling back over the weirs into the main aeration/mixing compartment. Transfer ceases, the clarifier (C) is now isolated, and solids separation occurs under quiescent conditions in C.
DISCHARGE
After settlement (nutrient removal cycle), the R.A.S. pump returns sludge to the head of the system from the bottom of the clarifier or to a sludge processing unit. Then after a second settlement, treated effluent is pumped out of clarifier (C) for discharge.
