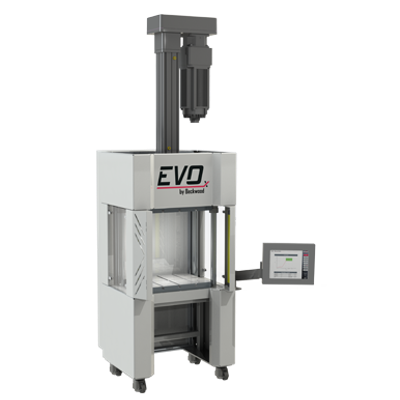

Beckwood EVOx - Model 5,000 LBF (2.5 TON) -Servo-Electric Press
The servo-electric presses shown below are fully configurable. Bed size, ram size, frame style, dwell time, power requirements, and more can be tailored to your exact needs.
Most popular related searches
- Positional repeatability within +/-0.0005”
- Force & positional feedback
- Data acquisition measuring torque, force, position, and time at a maximum rate of 1 sample / ms
- Programmable dwell time
- Roller-screw actuator design for longer life
- Light curtains and polycarbonate safety guarding
- Backed by Beckwood’s industry-leading Service & Support team
- C-frame or 4-post frame style
- Customizable worktables for added storage
- Extended (infinite) dwell
- Heated Platens
- 230v or 460v power configurations
- Bar code scanner – Part traceability with serialization
- C-Frame Configuration (Model C1-5)
Force : 5,000lbf (2.5T)
Bed/Ram Size* : 6" x 10"
Daylight : 12”
Stroke : 6" or 12"
Throat Distance : 4" - 4-Post Configuration (Model P1-5)
Force : 5,000lbf (2.5T)
Bed/Ram Size : 12” x 12”
Daylight : 12”
Stroke : 6" or 12" - Universal Specs
Actuator Type : Roller Screw
Interface : 15" touchscreen PC
