SU - Sewage Pumps

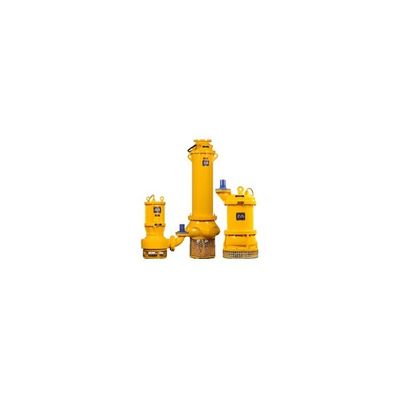

SU Submersible Sewage Pumps are of close coupled construction comprising of a single stage centrifugal pump with a non type impeller and high torque squirrel cage induction motor. They are specially designed for drainage of effluents and all types sludge with up to 10% solids content. These pumps are primarily used for pumping sewage, digested sludge and industry effluents. SU Submersible Sewage Pumps are generally used for wet sump application. A guide bar system is provided for use in the wet sump, which simplifies the installation and it’s removal for cleaning, maintenance and repairs.
Water
Mine water
Raw sewage
Effluent
Screened sewage
Digested sludge
Industrial effluents, etc
Available in both 960 and 1450 RPM
Motors are squirrel cage induction motors with built in thermister protection andclass “F” insulation
The impeller’s are single/double or multi vane with semi open non – clog design
Impellers can be provided with an agitator or cutter to agitate and shred and then pump the mixture
Impellers are in CF8M / NiCl / WCB or Nihard
Motor has an extra overload inbuilt capacity
Monobloc design
Can handle solids up to 100 mm
Common pump / motor shaft
The motor body is of fabricated construction
Suitable for both portable or fixed installations
Pump with oil lubricated double mechanical seal
Sewage treatment plants
Industrial waste water treatment plants
Effluent Treatment
Mines
Construction
Flood water control pumping station
Dock Drainage pumping stations, etc
Cast Iron
Cast Steel
NiCI
CF8
CF8M
M.S. (Fabricated)
SS – 316 (Fabricated)
SS – 316 (Fabricated), etc
