SMICO - Shale Shaker

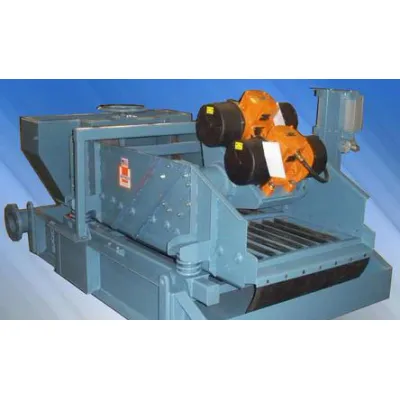

The SMICO Shale Shaker is a high speed, adjustable angle linear drive screener set up for oil field service. The top mounted inertia coupled dual motor drive is dependable, adjustable and simple to repair with off the shelf motors and drive components. The strong linear action conveys solids with minimum degradation while the uphill action increases fluid throughput. The deck angle is adjustable while drilling with a manually operated jack or optional electric system.

THE SMICO SHALE SHAKER CAN BE CUSTOMIZED TO YOUR SPECIFIC APPLICATION

Dewatering and liquid or solid separation applications require durability and efficiency above all else. If you want an adjustable solution that can stand up to the expected amount of wear and tear, the SMICO Shale Shaker is the perfect solution.

Available Sizes

The Shale Shaker is available in the following sizes:

Model 366-1D-AHZ - 36" Wide x 6 Ft. Long
Model 368-1D-AHZ - 36" Wide x 8 Ft. Long
* Model 488-1D-AHZ - 48" Wide x 8 Ft. Long

Versatile: Deck Angle is Readily Adjustable While Drilling
Efficient: Convey’s with up to 6 G’s of Force
Flexible: Easy Amplitude Adjustment Allows for Quick, Fine Tuning
Low Maintenance: Design ensures optimum screen life
Rugged: Reinforced Heavy Steel Plate Construction
Dependable: Inertia Coupled, Grease Lube, Readily Available Vibrating Motor Drive
Quality: Designed for the Rigors of Oil Field Service
High Capacity: Can Process up to 15 Barrels of Mud per Minute!

Possum Belly with Bypass Gate and Weir
Accepts a Variety of Screen Media
Explosion Proof Motors
Brute Force, Vibratory Motor or Elliptical Motion Drive
Wear Resistant Epoxy Coating
Spray Bars

Drilling Fluids
Waste Water
Washing Recycled Plastic
Washing Aggregate
