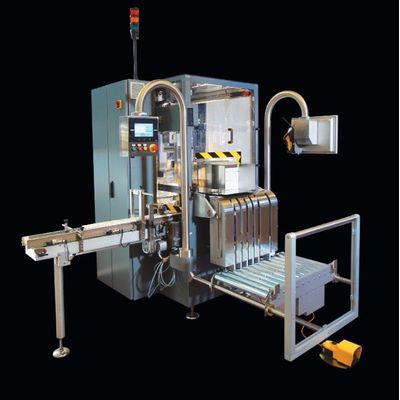

ALCI - Model 300 -Side Loading Semi-Automatic Case Packers
Side loading semi-automatic case packer, suitable for the packaging of individual or bundled cartons into manually formed cases. The machine footprint is extremely compact and it is the ideal solution in case of space restrictions at the end of the line.
The Cartons/Bundles feeding is totally automatic. The vertical Stacking station (with pre-stacking buffer), the commanded pusher and mobile hopper perform, with servo-motors, the automatic introduction in the formed Case.
The case has to be prepared (formed and partially sealed) in front of the Hopper. Once filled, the case is rotated from the case tilter and placed on the output inclined roller conveyor.
Finally, the case has to be closed and taped manually by Operator. Size change-over takes only a few minutes to perform and does not require the use of any tools. Fine adjustments can be done throuah wdiaital indicators.
- Pusher concealing System for Aggregation Inspection
- Formed cases Buffer and automatic case feeding by the case tilter
- Exit Belt and Automatic Case Print or Labelling Station
- Pusher Inspection Clear System* allows to free the inspection area and allows the camera to inspect a full layer into the mobile hopper: the pusher structure is completely lifted up (European Patent N° WO 2015/107452 A1):
- The inspection is performed in the hopper, the last step before the introduction of the full cartons composition into the formed case
- The distance between the camera lens and the layer is always the same, regardless of format size and the number of layers: the camera doesn`t need the autofocus functionality
- The camera position doesn`t need to be changed by format The inspection area is predetermined as the maximum area, the camera can acquired The vision system can set the capture grid by format
- Every Vision/Aggregation system can be integrated in the Machine (all vision system HW is integrated in the machine cabinet)
- COMPRESSED AIR 6 bar
- AIR CONSUMPTION 120 Nl/min
- INSTALLED POWER 55 Kw
- MAX SPEED Upto5cases/min

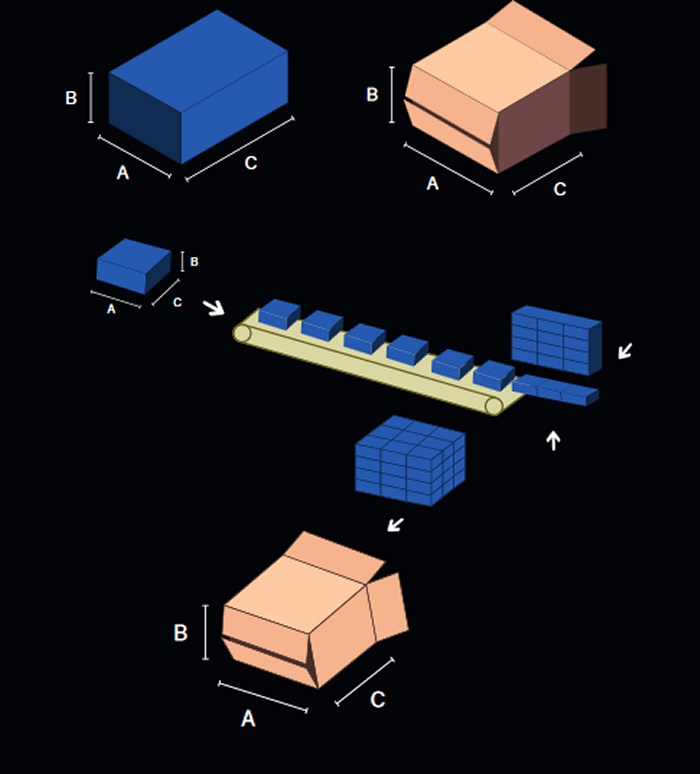

- CARTONS/BUNDLE DIMENSIONS
- A 30-r300
- E 1 15-r200
- C t 9 65-r200
- CASES DIMENSIONS
- A 150-r550
- B 110-r400
- C 75-r400
- Regulations 2006/42/Cb - 2006/95/U=-2004/108/Cfc CEI EN 60204-1 - CEI EN 60034-1 ISO/IEC12100-12 - 1SO/IEC14121 ISO/IEC4414 - ISO/IEC 1384^-2
- Declaration of Conformity CE Products to be processed YES Cartons, Bundles, Cases
- Type of cartons/bundfes feeding Automatic
- Type of Cases feeding Manual
- Format Adjustment YES
- Electrical voltage 400V3Ph + N + Pe
- Electrical frequency 50 Hz
- Instated Power 2kW
- Compressed Air 6 bar. Single feed point
- Use Frequency 24h/day
- Use Temperature 5*C + 40°C
- Use Humidrty <80%
- P&A Angle System YES
- Cartons/Bundles Size processable -
- A=25-r490mm
- B = 12-M40mm
- H = 65-M80mm
- Case Size processable -
- A = 150+480mm -
- B = 110* 350 mm . 1-1
- H= 80* 350 mm
- UserNerrace YES
- User Interface Language Italian
- Machine Speed Cases/minute: Depends on Manual case feeding
- Downstream machine Match YES
- Upstream machine Match YES
- Doc. Use and Maintenance Manual YES
- Doc. Electrical Scheme YES
- Doc Pneumatic Scheme YES

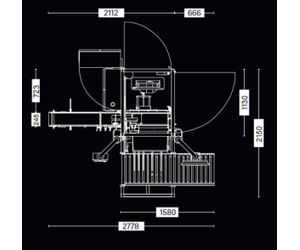

- Doc. Machine Layout YES
- Doc. Functional Specifications YES
- Doc Operator Manual YES
- Doc Machine Advises YES
