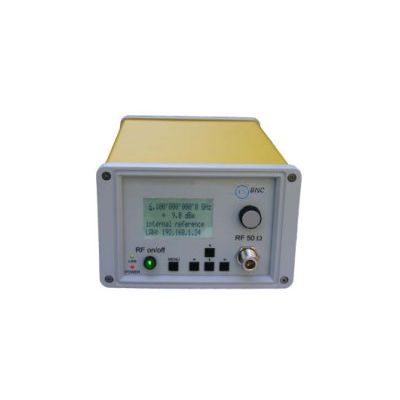

Model 835-6 - 6 GHz -Signal Generator
Berkeley Nucleonics` Model 835-6 is a low-noise, fast-switching analog signal generator that covers a frequency range from 9 kHz up to 6.1 GHz.The Model 835-6 The APSIN6010 provides full RF signal generator capabilities including OCXO-stabilized low phase noise signal with micro-Hz frequency resolution, wide and accurately levelled output power ranges, extensive modulation capabilities, and fast switching. It is targeted for a wide range of applications where high-quality analogue signals are mandatory, and provides an excellent, cost-effective alternative to expensive high-end RF signal generators with a small size and excellent RF performance.
The extremely compact, rugged and fanless design of the Model 835-6 operates at very low DC power consumption (only 12 watts), with minor heat dissipation. Additionally, the low power design allows the use of optional internal battery modules which make it a truly portable instrument, ideally suited for field testing, installation, and maintenance.
- Only 200 µs frequency switching time
- Excellent SSB phase noise
- Comprehensive AM, low-distortion
- Wideband FM and PM and high speed pulse
- Modulation for testing all types of receivers
- LAN/USB/GPIB (optional) remote control
- Input for USB power sensor
- Powerful trigger and sweeping modes
- R&D labs
- Installation & maintenance
- EMC / EMI testing
