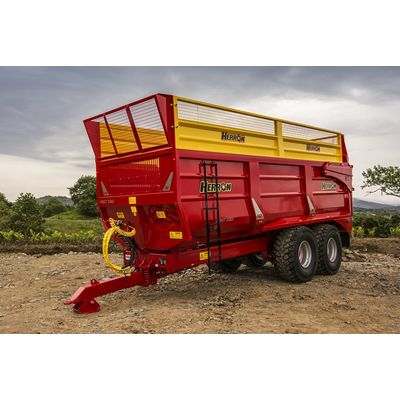

Herron - Model H2 -Silage Trailer
The Herron H2 Silage Trailer demonstrates the highest level of innovation on the agricultural market today. The trailers are engineered for strength and boast a modern design, superior maneuverability and high visibility for the operator. The main features include a multi-stage single tipping ram, commercial axles, hydraulic slimline up & over door, sprung drawbar and LED lights. Herron Engineering also offers a wide variety of options such as a steering axle, air/hydraulic load sensing valve, electric/hydraulic brake fail system, choice of wheels. All trailers are shot-blasted and finished with two-pack polyurethane paint. Models vary from 14 to 26 tonnes.
Most popular related searches
silage trailer
grain silage
silage
agriculture marketing
grain chute
grain door
root crop
advanced agriculture
maize
hydraulic chute
- ADR Commercial 10 Stud Axles
- 4mm High Grade Steel Floor, 3mm High Grade Steel Sides and Closed Channel Sub Structure
- Heavy Duty Rectangular Hollow Section (RHS) Chassis
- Multi-Stage Single Tipping Ram For Faster Discharge
- Centre Rocking Bogies or Spring Suspension
- Hydraulic Slim Line Rubber Sealed Up & Over Door
- Hydraulic Brakes
- Sprung Drawbar
- 160mm Wide Tapered Floor Plan
- Perspex Front Window
- Ladder
- Body Prop
- LED Lights and Strobe
- Mud Flaps
- Shot-Blasted and Finished with Two-Pack Polyurethane Paint
H2 GS-14 Tonne Tandem Axle
- Size: 18’0” x 8’0” x 5’0" Deep Tapered
- 10 Stud Axles 406 x 120 Brakes 105k
- Hydraulic Brakes
- Centre Rocking Bogies or Spring Suspension
- Hydraulic Slim Line Up & Over Rubber Sealed Door
- Sprung Drawbar
- Perspex Window
- Ladder
- 160mm Wide Tapered Floor Pan
- Multi-Stage Single Tipping Ram
- 385/65 - 22.5 Super Singles Wheels
- Led Lights & Strobe
H2 GS-16 Tonne Tandem Axle
- Size: 20’0” x 8’0” x 5’0” Deep Tapered
- 10 Stud Axles 406 x 140 Brakes 105k
- Hydraulic Brakes
- 20 Tonne 7 Leaf Spring Suspension
- Hydraulic Slim Line Up & Over Rubber Sealed Door
- Sprung Drawbar
- Perspex Window
- Ladder
- 160mm Wide Tapered Floor Pan
- Multi-Stage Single Tipping Ram
- 385/65 - 22.5 Super Singles Wheels
- Led Lights & Strobe
H2 GS-18 Tonne Tandem Axle
- Size: 22’0” x 8’0” x 5’0” Deep Tapered
- Hydraulic Slim Line Up & Over Rubber Sealed Door
- 10 Stud x 127mm Axles 420 x 180 Brakes 105k
- Hydraulic Brakes
- 26 Tonne 10 Leaf Spring Suspension
- Hydraulic Slim Line Up & Over Rubber Sealed Door
- Sprung Drawbar
- Perspex Window
- Ladder
- 160mm Wide Tapered Floor Pan
- Multi-Stage Single Tipping Ram
- 385/65 - 22.5 Super Singles Wheels
- Led Lights & Strobe
H2 GS-20 Tonne Tandem Axle
- Size: 24’0” x 8’0” x 5’0” Deep Tapered
- 10 Stud x 127mm Axles 420 x 180 Brakes 105k
- Hydraulic Brakes
- 30 Tonne Tie Rod Commercial Suspension
- Hydraulic Slim Line Up & Over Rubber Sealed Door
- Sprung Drawbar
- Perspex Window
- Ladder
- 160mm Wide Tapered Floor Pan
- Multi-Stage Single Tipping Ram
- 385/65 - 22.5 Super Singles Wheels
- Led Lights & Strobe
H2 GS-24 Tonne Fast Tow Tri-Axle
- Size: 24’0” x 8’0” x 5’0” Deep Tapered
- Rear Steering 10 Stud Axles 420 x 180 Brakes 105k
- Air/Dual Load Sensing Valve (LSV)
- Hydraulic Slim Line Up & Over Grain/Silage Door
- 32 Tonne Tri-Axle Tie Rod Commercial Spring Suspension
- Sprung Drawbar
- Perspex Window
- Ladder
- 445/65R 22.5 Oversized Super Singles Wheels
- Led Lights & Strobe
H2 GS-26 Tonne Fast Tow Tri-Axle
- Size: 26’0” x 8’0” x 5’0” Deep Tapered
- Rear Steering 10 Stud Axle 420 x 180 Brakes 105k
- Air/Dual Load Sensing Valve (LSV)
- Hydraulic Slim Line Up & Over Grain/Silage Door
- 36 Tonne Tri-Axle Tie Rod Commercial Spring Suspension
- Sprung Drawbar
- Perspex Window
- Ladder
- 445/65R 22.5 Oversized Super Singles Wheels
- Led Lights & Strobe
- 10 Stud Steering Axle 406 x 140 Brakes 105k (16 Tonne Only)
- 10 Stud Axle 420 x 180 Brakes 105k (16 Tonne Only)
- 10 Stud Steering Axle 420 x 180 Brakes 105k (16, 18 and 20 Tonne Only)
- Air/ Hydraulic Load Sensing Valve (LSV)
- Anti-Lock Braking System (ABS)
- Hydraulic Brake Fail System
- Eurosafe Electric Brake Fail System
- Hydraulic Load Sensing Valve (LSV)
- Power Handbrake (Mechanical Brake Fail System)
- 20 Tonne 7 Leaf Suspension (14 Tonne Only)
- 26 Tonne 10 Leaf Suspension (16 Tonne Only)
- Hydraulic Axle Weight Transfer
- 12” Greedy Boards
- Hinged Maize Front Angled
- K80 Spoon Hitch or 50mm Adjustable Bolt-On Hitch
- Swivel Hitch
- Screw Clamps on Sludge Door
- Rear Push Bar
- Lever Grain Chute
- Hydraulic Root Crop Dropping Side
- Roll Over PVC Easy Sheet & Domes
- Roll Over PVC Easy Sheet at Silage Side Level & Work Platform
- Front Work Platform
- Jack Stand
- Side Tool Box
- Rear Work Lights
- Air Brakes Piped to Rear Drawbar
- On Board 600 litres Diesel Tank (Tri-Axle)
- Wheel Option: 445/65R 22.5 Oversized Super Singles Wheels
- Wheel Option: BKT 550/45 - 22.5 20 Ply Flotation Wheels (14 Tonne Only)
- Wheel Option: BKT 560/45R 22.5 Ridemax Radial Wheels (14 Tonne Only)
- Wheel Option: BKT 560/55R 22.5 Ridemax Radial Wheels (14 & 16 Tonne Only)
- Wheel Option: BKT 560/60R 22.5 Ridemax Radial Wheels
- Wheel Option: BKT 650/50R 22.5 Radial Wheels
- Wheel Option: Michelin Kargo 560/60 22.5 Wheels
- Wheel Option: Bandenmarkt 560/60R 22.5 GSP Aircraft Radial Wheels
- Wheel Option: Nokia 560/60 22.5 Wheels
- Colour Option
