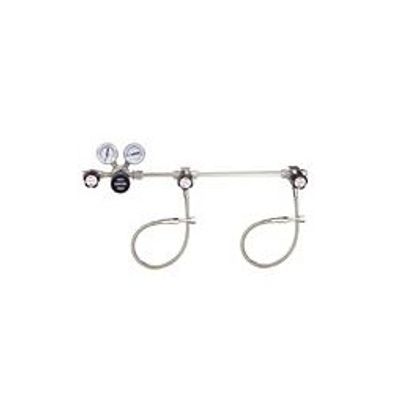

Gentec - Model B110/B120/SL110/SL120 Series -Simplex Manifold System
SL100 series manifold system uses R21SL regulator and B110 series uses R21B regulator, suitable for small, medium flow application. SL120 series manifold system uses R22SL regulator and B120 series uses R22B regulator, suitable for medium, large flow application.
Most popular related searches
needle valve
diaphragm valve
check valve
stainless steel check valve
gas cylinder storage
pipe testing
pipe pressure testing
flow regulation
pressure regulator
flow regulator
- R21 or R22 regulator
- Complete with safety valve
- Stainless steel pigtail with check valve
- Single line of cylinders, gas supply interrupted during cylinder change
- Piping is tested for pressure and leakage.
- Wall mounts optional
- Maximum Inlet pressure: 3000psig
- Working temperature: -40 °F ~ 165 °F(-40 °C ~ 74 °C)
- Pipe: 1/2” seamless stainless steel (BA grade)
- Flow rate: see flow data chart
- Regulator leak rate: 2 x 10-8 atm cc/sec He
- Body: 316L, Chrome-plated brass
- Diaphragm, filter: 316L
- Bonnet: 304, Chrome-plated brass
- Seat: PCTFE
- Stem: 316L
- Spring: 316
- Body: 316L, Chrome-plated brass
- Diaphragm, filter: 316L
- Bonnet: Chrome-plated brass
- Seat: PCTFE
- Stem: 316L
- Spring: 316
- Diaphragm valve
- Needle valve
- Filter
- Flash back arrestor
- Pigtails
- Pressure alarm
