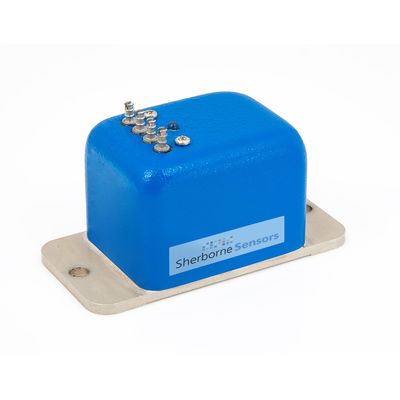

Sherborne Sensors - Model LSI Series -Single Axis Inclinometer
The LSI Series is a range of gravity referenced servo inclinometers are used in a variety of industrial applications where high precision angular measurements are required. Models are available in a variety of ranges from +/-14.5 degrees to +/-90 degrees with low impedance output voltage signals. Electrical terminations are via solder pins.
Most popular related searches
inclinometer
level controller
environmental monitoring system
environmental system
machine safety
sealing system
environmental monitoring
- Output : Voltage
- Degree Range : 14.5 degree, 30 degree, 90 degree
- Termination : Pin
- Available ranges from ±14.5° to ±90°
- Resolution to 2 arc second (0.0006°)
- High level ±5 VDC output proportional to sine of the angle of tilt
- Electrical terminations via solder pins
- Fully self-contained and able to connect to a DC power source and readout or control device, to form a complete tilt measurement system
- Environmentally sealed to IP65
- Continuous operation in temperatures of -18°C to +70°C
- Rugged construction with high reliability
- Optional power supplies and display indicators
- Custom design and manufacturing capabilities are available to meet customers specific application requirements
- Level control of machines and structures
- Safety control of cranes and lifting equipment
- Civil engineering studies
