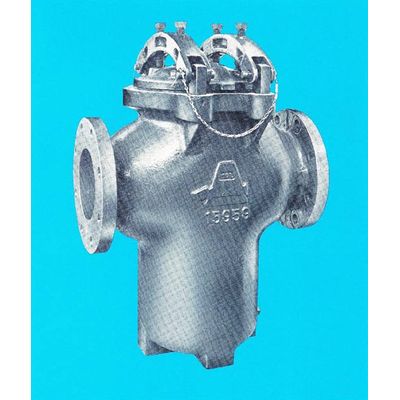

Tate Andale - Model 105-B -Single Basket Strainer
Tate Andale Model 105-B Strainers with a single basket have almost universal application wherever fluid flow can be stopped temporarily for removing and cleaning the basket. Model 105-B Strainers are available in sizes W thru 14" Hi" thru 2" available with threaded or flanged connections: 21//` thru 14" flanged connections) for system pressure up to 150 PSIG. The basket access cover is yoke type or bolted. The strainers have a bail type basket in a wide selection of perforated and mesh sizes.
The strainer shall be a single basket type, capable of handling_______ (fluid) at a flow rate of_______GPM with an approximate pressure drop (clean) of_______PSIG. The strainer shall be Model 105-B as manufactured by Tate Andale Inc., and suitable for a working temperature of_______° F.
The strainer body shall be of cast iron construction with_______" threaded or flanged inlet and outlet connections PUT thru 2" available with threaded or flanged connections; 2W thru 14" flanqed connections) and shall have a lift-off or hinged cover (yoke type), depending on strainer size.
The strainer basket shall be of 304 stainless steel construction with _______inch diameter perforated openings (or a_______mesh liner).
Body. Cover: Cast Iron, Cast Steel
Basket: 304 Stainless Steel
- Body and cover of cast iron or steel
- Top entry basket precision machined to prevent particle by-pass
- Higher design pressures
- Magnet assemblies
- Wire cloth basket liners/inserts
- Zinc anodes for salt water
- Baskets of 316 Stainless Steel or Monel
