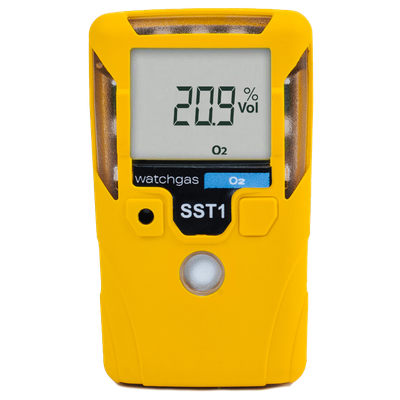

WatchGas - Model SST1 Serviceable -Single Gas Detector
The SST1 Serviceable offers one of the most cost-effective solutions on the market. With its 3-year replaceable battery and solid polymer sensor technology, the SST1 offers a compact and modular design without compromising its ruggedness. The SST1 Serviceable can be configured to your needs with one simple tap of the NFC and paired with the WatchGas Application. Monitoring for Low, High STEL, and TWA the SST1 will indicate any immediate risks and long-term exposure to toxic gases. SST1 is the platform that will allow us to expand on up to 8 different gases, so this is the ideal solution for your application.
- TWA & STEL Alarms
- NFC and WatchGas Application
- 3-year battery life based on alarms
- Serviceable Battery and Sensors
- Solid Polymer Sensor Design
- Largest LCD display
- External Filters
Size: 83 × 49 × 20 mm (3.3 × 1.9 × 0.8 in)
Weight: 88 g (3.1 oz)
Temperature: CO, H2S, O2 SO2: -40°C to +60°C (-40°F to +140°F) / Others: -20°C to +60°C (-4°F to +140°F)
Humidity: 5 ~ 95 %RH (Non-condensing)
Response time T90: H2S, CO, O2, PH3, H2 Low Range: < 10 sec CH4S: <40 sec SO2, H2 High Range : <55 sec NH3: <130 sec Other sensors may vary
Battery life: O2: 2 years H2S, CO, SO2, NH3, H2, PH3, Ch4S: up to 3 years, dependent on gas alarms
Event logging: Last 100 events
IP: IP67-68
Communication: NFC
Shelf life: 1 year
Certifications & Approvals: ATEX, IECEX, UKEX II 1 G Ex ia IIC T4 Ga I M1 Ex ia I Ma 0344 Int.Safe: Cl I Dv 1, Gr A,B,C,D T4 CSA C22.2 NO. 60079-0 CAN/CSA C22.2 NO 60079 UL 61010 safety requirements CAN/CSA-C22.2 NO 61010-1-12 Low Voltage Directive 2014/35/EU EMC Directive 2014/30/EU
Warranty: Instrument: 3 years Battery: 2 years based on 1 min of alarm per day Sensors: SO2 2 years, PH3: 1 year, NH3: 1 year, CH4S: 1 year, H2: 2 years, Other sensors: One year shelf life then two or three years from activation date depending on device type.
