Newomics - Model UniESI -Single Ion Source

Built for Superior Microflow and Nanoflow LC-MS

Sensitivity
5 - 50x
more sensitive compared to conventional methods.

Robustness
CV ≤ 5%
from 300 plasma injections.

Throughput
< 1 min.
per sample for direct infusion ESI. More than 60 samples per hour.

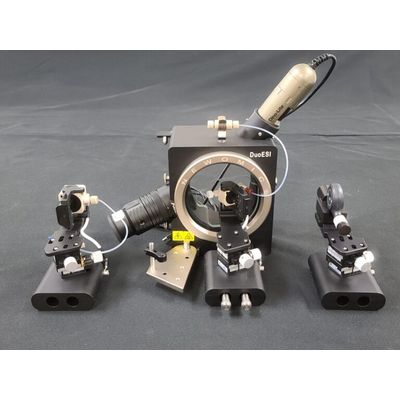

• The first ion source with multiple swappable microflow and nanoflow modules
• Compatible with all mass spectrometers from Thermo, Bruker, Agilent, Shimadzu, and Waters
• Plug-and-play platform for Newomics M3 emitters and MEA chips
• Plug-and-play platform for third-party columns and other LCMS consumables
• A universal, unified ion source for low-flow electrospray ionization mass spectrometry

• Ionization Mode : Atmospheric pressure electrospray ionization (ESI), both positive and negative mode.
• ESI Probe : Newomics M3 Emitter and MEA Chip (refer to M3 Emitter and MEA Chip specification)
• Open or Closed System : Semi-closed source
• Flow Rate :
• Nano (20 – 1000 nL/min), for nanoMEA chips
• Micro (1 – 50 µL/min), for M3 emitters and microMEA chips
• Spray Angle :
• Fixed angle of 25° for M3 emitters
• 0° angle for nanoMEA chips
• Capillary Voltage : 0 – 6 kV
• Spray Current : 0 – 10 µA, max. 50µA
• Sheath Gas Flow Setting : 0 – 30 (arbitrary units)
• Auxiliary Gas Flow Setting : 0 – 20 (arbitrary units, optional)
• Translational Stage : Linear XY-axis manual stage, ±5 mm travel distance, 30 µm travel accuracy
• Camera : 1.3M pixels, 20x - 90x magnification rate, color CMOS sensor, up to 30 fps frame rate
• Light Source : Cool white (9000K) 5 mm round LED light, luminous intensity 46400 mcd
• Connection :
• Face seal, finger-tight 10-32 threaded fittings including Thermo nanoViper, IDEX MarvelX and MarvelXACT, Waters ZenFit, Phenomenex SecurityLink, VICI Cheminert C360IZR1, and nanoConnect
• Unit Dimension :
  • Width: 25 cm (9.8 in.)
  • Height: 17.5 cm (6.9 in.)
  • Depth: 15 cm (5.9 in.)
  • Unit Weight : 3 kg (6.6 lbs)
