Inhemeter - Model DIN 3.5 -Single-Phase Two Wires Meter

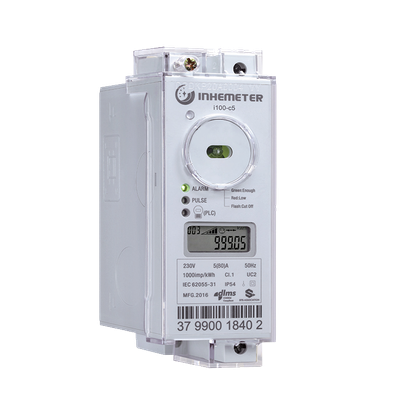

DIN 3.5 is a new generation of advanced single-phase two wires, multi-function, split type (keypad-based), anti-theft, smart prepayment meter. DIN 3.5 fully comply with STS standard and is suitable product for residential or commercial customers in utility companies to accomplish prepayment business process.
DIN 3.5 has excellent anti-tamper feature like anti-bypass feature (it is measuring energy by using two sensor in phase and neutral circuit and record the bigger one) and terminal cover detection sensor. DIN 3.5 can utilize different communication media to CIU or data concentrator (for smart metering application) via PLC, Cable or RF based on customer requirements.
The meter consists of two parts: the MCU (Metering & Control Unit) and CIU (Customer Interface Unit).
Prepayment Vending System
Vending system solution is a set of professional prepayment electricity vending management software that connects electricity vending companies, customers, metering equipment and payment channels.
- High Protection Degree
- Multi Communication
- DLMS/COSEM
- Dual Measurement Sensor
- STS Compliance
- Anti-Tamper
- Support LCD
