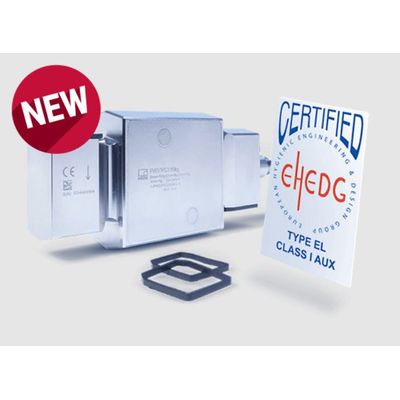

Model PW37P -Single Point Load Cells
The PW37P precision single-point load cell is ideal for the needs of the food industry. Its EHEDG certification stands for the highest level of hygiene. Due to its particularly smooth surface, liquids roll right off and dirt can be removed very easily. The load cell is easy to integrate into any system due to its industry-standard mounting dimensions. The PW37P also offers an extremely long service life due to its high torsional stiffness and durable materials that can withstand moisture or aggressive chemicals. Accuracy class: C3 multi-range (OIML certified), Y up to 25000 for the PW37PY version. Maximum capacity: 0–50kg, 0–100kg, and 0–200 kg. Degree of protection: IP68/IP69K
Highly versatile
- Industry-standard mounting dimensions
- Ranges of maximum capacity: 0–50 kg, 0–100kg, and 0–200 kg
- M12 connector plug
- white check mark in green circle
- Easy integration into a wide range of food industry applications
Hygienic
- Completely made of stainless steel and, therefore, suitable for use in the food industry
- Dirt-repellent design without gaps or edges
- Hermetically sealed
- “Clean in Place“ (CiP) capability
- white check mark in green circle
- Easy to clean: Liquids roll right off; easy and residue-free cleaning
Robust
- Extremely high chemical resistance due to the use of robust materials
- Suitable for humid and aggressive environments
- IP68/IP69K
- High torsional stiffnes
- white check mark in green circle
- Durable and rugged, even in harsh environments
Suitable hygienically designed cables are also available for the PW37P load cell.
With the aid of the DSE weighing electronics or the PAD digital transducer electronics, the measured values of the PW37P can be quickly and easily visualized, configured and communicated to a connected PLC. The compact, rounded stainless-steel enclosure protects the electronics from liquids and adverse environmental conditions. The DSE-HIE is recommended for use in applications with stringent hygiene standards.
