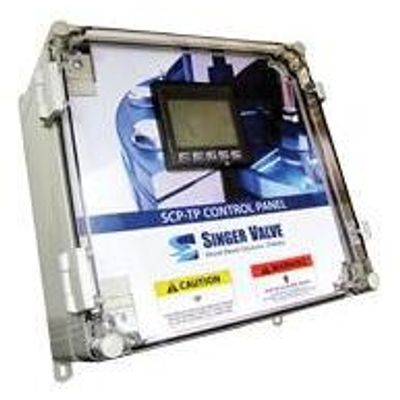

Singer Valve - Model SCP-TP -Single Process Control Panel Series
The SCP-TP Controller is a simplified process controller designed to complement the Dual Solenoid Control Valve. It offers quick and easy configuration for any single process application as well as on/off applications. The SCP-TP is also equipped to be configured to control the Singer 420DC Motor. Range of application is dependent on the process variable (feedback) transmitter used, which includes (but not limited to) common automatic control valve functions with conventional pilots.
MoThe SCP-TP Controller reads and compares the process feedback (process variable) 4 to 20 mA signal to the desired setting (set-point) 4 to 20 mA signal. The SCP-TP then accurately positions the valve to bring the process variable towards the set-point until they coincide. The SCP-TP is also equipped with data logging features than when enabled can log all sensor feedback and setpoint data with a time stamp.
- Compatibility with remote SCADA Modbus, Hardwired 4 to 20 mA or local set-point adjustment
- Simplified single loop process controller with P.I.D. implementation, ON/OFF or 4-20mA motor control
- Selectable input controls and output alarms
- IP 66, 67 NEMA 4X rated panel
- Colour touch screen interface display
- Equipped with data logging features

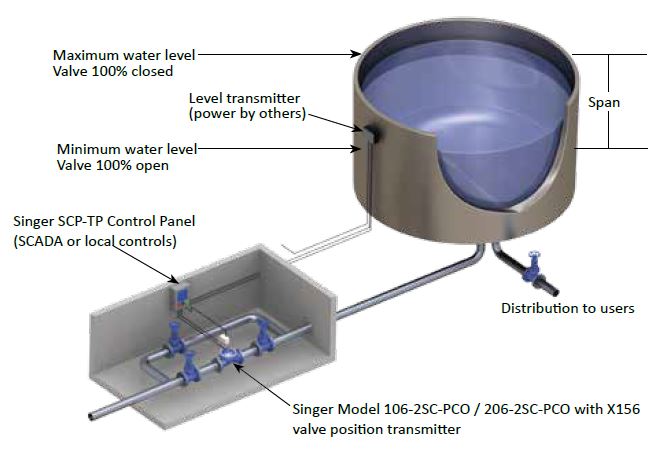

- Level control
- Pressure control
- Flow control
- Position control
- Data logging
- 420DC Control
- Display:
- Coloured Touch Screen Interface (standard)
- 3.5" TFT Transmissive Color, QVGA (320x240)
- Input Power Supply:
- 120VAC, 60 Hz, Typical Load: 0.5A, Full Load: 5A Max
- 240VAC, 50 Hz, Typical Load: 0.3A, Full Load: 5A Max
- 24VDC, Typical Load: 1A, Full Load: 5A Max
- Sensor DC Supply:
- AC Model: 24VDC, 2.5A Max
- DC Model: Isolated 24VDC, 1A Max
- Operating Ambient: -10 to +60ec (14 to 140 «F)
- Storage temperature: -10 to +602C
- Relative Humidity: 5 to 90% RH non-condensing
- Enclosure Material: Polycarbonate (standard)
- Enclosure Rating:
- NEMAType4,4X, 12, 13
- IEC 60529, IP66, IP67
- Safety standard: UL508A Industrial Control Panel
- Installation Location: not suitable for use in hazardous locations or for use with devices that are installed in hazardous locations
- Atmospheres: not suitable for use above 2000m or in explosive or corrosive atmospheres. Electrically conductive pollution must be excluded from the cabinet in which this controller is mounted
- Digital Input Rating: 24VDC, 2.4mA Max
- Alarm Output Rating: min: 24VDC, 1.5A Max
- (Dry Contacts) max: 250VAC, 1.5A Max
- Solenoid Relay Output
- Rating:
- 120VAC, 1A Max
- (Solid State Relays) 240VAC, 1A Max
- 24VDC, 1.5A Max
- Analog Inputs:
- Process Variable: 4-20mA. All configurable between limits
- Remote Setpoint: 4-20mA. All configurable between limits
- Analog output:
- Signal Type: scaleable4-20mA signal (non-isolated)
- Retransmission Options: Process variable, Setpoint, or 420DC Actuator Control Signal
- Resolution: 12 bits
- Clock Accuracy: +/- 1 minute/month at 25°C
- Datalogging: Yes, adjustable sampling frequency up to 1 sample/sec
- Removable Media:
- MicroSD card (not included)
- Capacity limited to 32GB
- Communication:
- Modbus over Ethernet
- Modbus over Serial
- Dimensions:
- Polycarbonate Enclosure: 11.34"(288mm) Length x 1134" (288mm) Width x 6.81" (173mm) Height
