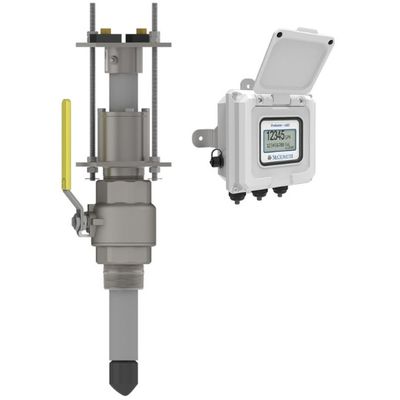

McCrometer SPI Mag - Model 5000 -Single Profile Insertion Electromagnetic Flow Meter

The SPI Mag reliably measures flow in water and wastewater as well as any type of industrial flow processes involving conductive fluids such as potable water, slurries, sludge, cooling water, and pulp stock.

• Proven electromagnetic technology based on Faraday's Law
• Debris shedding, self-cleaning sensor eliminates costly maintenance
• Cost is independent of line size
• Easy Hot Tap Installation - no interruption of flow process
  • Nominal pipe size availability
  • Reverse flow indication

• Accuracy:
• AC or DC power: ±2% of measured value ±0.006 ft/s (±0.0018 m/s)
• Battery power: ±1% of measured value ±0.006 ft/s (±0.0018 m/s)
• Reverse flow: Not available. When flow is reversed, the display reads 0 flow
• Directional Response: Reads 0 when flow is reversed
• Electrical Connections: Compression gland seals for 0.125” to 0.375” dia. round cable
• Insertion Tube:
• 1” stainless steel tube
• 12” - will profile 4” pipe ID
• 24” - will profile 16” pipe ID
• 36” - will profile 28” pipe ID

• 2” PVC tube
• 18” - will profile a 10” pipe ID
• 24” - will profile a 16” pipe ID
• 30” - will profile a 22” pipe ID
• Opt. stainless steel tube. Specify length - 240” max
• IP Rating: IP68 submersible sensor
• Line size: 2 to 240 inches (50 mm to 6,096 mm)
• Material:
• Sensor: Polyurethane exposed to flow
• 2” sensor mounting: PVC and Stainless Steel exposed to flow. (Stainless Steel Insertion Tube Optional)
• Compression seal Buna “N” O-Ring seal exposed to flow
• Measurement Method: Electromagnetic flow measurement.
• Volumetric flow in filled flow conduits 2” (50mm) to 96” (2,440 mm) diameter utilizing insertable velocity sensor. 1” meter = 2” to 30” pipe I.D.; 2” meter = 6” to 96” pipe I.D.
• Flow indication in English Standard or Metric units
• To determine insertion tube length for typical near wall installations, divide the pipe I.D. by 8 and add 18”.
• For full profiles, add 18” to the pipe I.D.
• Tube assemblies include rods and mounting hardware
• Operating Conditions: Pressure/temperature limits
• PVC Insertion Tube: Up to 105°F (41°C) at 150 PSI
• Stainless Steel Insertion Tube: Up to 160°F (71°C) at 250 PSI (McCrometer recommends the use of Stainless Steel)
• Note regarding storage: During freezing conditions and when meter is not in use, sensor must be removed from pipe and stored in dry conditions.
• NOTE: Damage to the sensor caused by allowing the sensor freeze in the pipe is not covered by the warranty.
• Options:
• Sensor Insertion Tool
• Additional Sensor Cable up to 200’ (for longer lengths consult factory)
• Valves
• Sensor Cable:
• Standard: 25’ McCrometer supplied submersible cable with each remote mount unit
• Optional: Up to 200 feet, or 25 feet max for battery powered
• Velocity Measurement Range: +0.3 to +32 ft/s (+0.09 to +10 m/s)
• Warranty: 24 months
