CMI - Sintered Metal Filter Unit

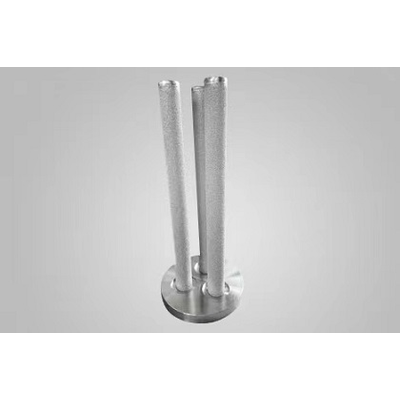

CMI manufactures sintered metal powder filter cartridges in a wide range of materials, sizes and connections to meet the characteristics and configurations that customers need. These filters can be assembled into unit, with different numbers of tubes and different section lengths acc. to customer request. There are several types of pin ends to be chosen, as well as connection types of these tubes.
Most popular related searches
sintered metal filter
water treatment industry
industrial water treatment
industrial filtration
water treatment filtration
chemical industry filtration
clarification and filtration
gas filtration system
water filtration industry
industrial decarbonization
- Bigger filtration area
- Good for application with big flow rate
- Suitable in high temperature gas filtration
- Precise pore size distributions
- High fluid flow permeability
- Easily cleaned/back-flushed
- Corrosion/abrasion resistant
- High temperature resistance, up to 900?
- High strength and dimensional stability
- No media migration and second pollution
- Length: can be up to 3500mm or even longer
- Outside Diameter(OD): 30mm,40mm, 50mm, 60mm, etc.
- Media Grade: 0.3-100 μm
Note: Special material, sizes and shape can be customized
- Stainless Steel (SS316L, 304L,310S,904L)
- Titanium
- Hastelloy (C-22,C-276,XB-2)
- Inconel (600, 625,800)
- Monel (400 and so on)
- Nikel
Petrochemical Industry
- Decarbonization filtration and precision filtration of liquid products, liquid raw materials and pharmaceutical intermediates in chemical industry
- Filtration and recovery of ultrafine crystals and catalysts
- Precise filtration after resin adsorption and impurity removal filtration of heat conducting oil and materials
- Field return water filtration
-Water treatment Industry
- Security filtration of ultrafiltration, RO and EDI systems in water treatment industry, filtration after ozone sterilization, and before canning
- Security filtration before reverse osmosis in seawater desalination field
-Pharmaceutical Industry
- Decarbonization filtration of large infusion, small injection and concentrated oral liquid and security filtration before terminal filtration of dilute liquid
- Impurity removal and filtration in the production process of bulk medicine, decarbonization and fine filtration of materials
-Food Industry
- Clarification and filtration of beverage, fruit juice, liquor, beer, mineral water, soy sauce and vinegar
-In all of these industrial above
- Material interception and filtration in vacuum feeding system (titanium filter element can prevent powder material leakage and environmental pollution)
- Gas purifications of steam, compressed air, catalytic gas filtration
