Shijiazhuang Tech-macro Pump Industry Co., LTD.

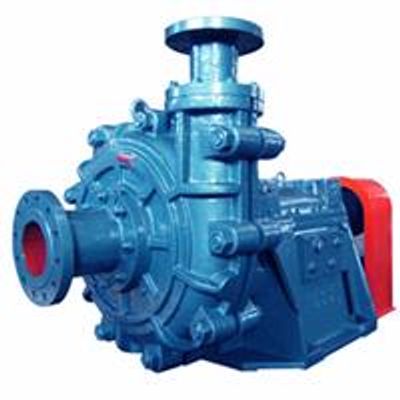

Model ZJ(L) Series -Slurry Pump

FromShijiazhuang Tech-macro Pump Industry Co., LTD.

SHARE

Slurry Pump ZJ(L) series are designed as single-stage, single-suction double-casing centrifugal slurry pumps. The pumps are classified into vertical(ZJL) and horizontal(ZJ) version according to mode of construction. The ZJ(L) series pumps used international advanced solid-liquid two-phase flow theory and designed using the Minimum-Wear principle. Slurry Pump ZJ(L) series are suitable for handling abrasive and corrosive solids-bearing slurry with maximum density, which are widely used in power, metallurgical, mining, coal and building materials.

Most popular related searches

horizontal slurry pump

centrifugal slurry pump

tailings processing

centrifugal pumping

centrifugal pump

grease concentrator

Concentrate and tailing processing in concentration plant
Ash and slag removal in power plant
Coal slurry delivery and heavy media coal preparation
Transferring slurry in mining operations
Heavy media coal preparation
Main auxiliary products in thermal power unit

High efficiency; energy-saving; light weight; reasonable construction; reliable performance; little vibration; low noise; easy maintenance.
Various design of the pump speed and versions enable the pump to work even under poor conditions.
The bearing layer and the wear layer can be separated. And the wet parts are made from strong abrasion resistance high-chrome alloy cast iron.
Three types of shaft seals, mechanical seal, packing seal and packing combined expeller seal can be adopted.
The pump discharge can be positioned to 8 directions at intervals of 45 degrees according to need. The inlet is horizontal.
The medium transferred temperature should not exceed 60ºC. The weight concentration of the mortar should not exceed 45%; mineral slurry, 60%.
The pumps can be installed in multi-stages for long distance delivery.
Drive mode: mainly direct connection(DC).
Lubricating way:40ZJ-200ZJ adopts grease or oil lubrication according to bearing box structure;250-500ZJ adopts grease lubrication.
