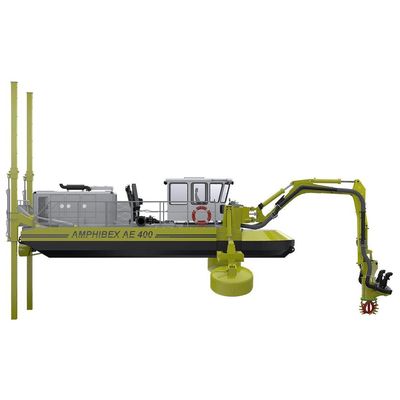

Amphibex - Model AE400 -Small Dredger

AE400 IN SIZE

With a total length of 10.85 meters, the AE400 is still the smallest dredger of the Amphibex fleet. It totals a working weight of approximately 22 metric tons, making it easy to transport.

PUMPING CAPACITY

The AE400 is a small dredger with relatively impressive pumping capacity. Perfect for a variety of projects, it pumps up to 4250 gallons per minute.

EXCAVATING REACH

Although it is a small dredger, the AE400 offers an excavation and working depth of up to 6 meters, with an axis of rotation of 170 degrees.

General Description

• Max. length: 12.85 m
• Working weight: (approx.) 22 metric tons
• Haulage distance: 10.85 m
• Haulage Width: 3.5 m
• Haulage Height: 3.2 m
• Speed: (approx.) 5 to 8 knots

Electrical System

• Maximum operating pressure: 450 bar
• Hydraulic system capacity: 500 L (made with a biodegradable vegetable base)
• 12 OR 24 Volts
• Batteries (2): 1230 A

Hydraulic System

• Maximum operating pressure: 450 bar
• Hydraulic system capacity: 500 L (made with a biodegradable vegetable base)

Engine

• Caterpillar C9 Acert
• Cylinders: 6
• Maximum power: 275-375 bhp
• Max. torque: 375 bhp: (1230 lb-ft) -1225 N.m. at 1400 rpm
• Air compressor tu/flo: 501-13 ft3/min.
• Fuel tank: 1200 L

Excavator

• Excavation radius: 7.86 m on 170°
• Excavation Depth (with telescopic indicator): 6.5 m
• Power of wrenching scoop: according to the selected option
• Power of attack excavator: according to the selected option

Pumping Capacity

• In Gallons per Minute (GPM): 4250
• Output Diameter: 10 inches

Standard Equipment

• Quick attach buckets and accessories; 500 L bucket (0.6 cubic yard)
• One-piece hull, corrosion resistant, divided into 9 sealed compartments
• Two rear stabilizers, equipped with hydraulically tilting cylinders. Depth control by means of hydraulic cylinder / mechanical control
• Two front stabilizers with detachable floats and removable spuds
• Direction and hydraulic height controllers propulsion system
• Dry powder extinguisher: one 5 kg (10 lbs.)
• Standard excavator Arm with a horizontal pump-shredder bucket and hydraulic pumping system – 2 pumps, maximum capacity of 2 X 167 L (2 X 43 Gal)/second
• Discharge line located under cab / Output connection SAE250 (10”)
• Fast accessory attachment
• Rescue equipment
• Heating system
• Air-conditioning

Optional Equipment

• Discharge spout for side casting
• 3 m (9’ 10″) Rake
• 250 mm (10″) X 2 m (6′) discharge pipe, aluminum assembly, SAE 250 (10”) for connection to the floating conduit
• Navigation lights, folding mast
• Winch
• Crane
• Tool box
• 800 L (1 cubic yard) bucket
