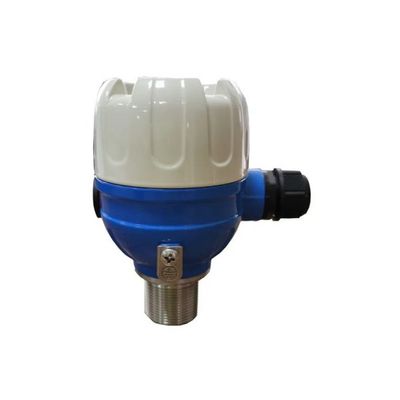

Gallop - Small Range Ultrasonic Level Meter

The small range Ultrasonic Level Meter has strong anti-interference ability, can be set by the host computer software to set the upper and lower limit nodes and online output adjustment, select analog, switch and RS485 output, convenient interface with related facilities. It has high reliability, no pollution, stable performance, and can meet most liquid level and material level measurement requirements without contacting industrial media. It completely solves the shortcomings such as winding, clogging, leakage, medium corrosion and inconvenience caused by traditional measuring methods such as pressure type, capacitance type and float type. Therefore, it can be widely used in various fields related to material level and liquid level measurement and control.

• Range: 1m/2m
• Blind zone: <0.06-0.15m
• Maximum error: less than ±1mm, less than ±1.5mm
• Display:  LED / LCD
• Analog output signal: 0 ~ 20mA; 0 ~ 5V; 0 ~ 10V;
• Digital output: RS485
• Working voltage: DC12-24V
• Dimensions: Φ74mm × 92mm × M30 (stainless steel); Φ74mm × 117mm × G1 1/2 (ABS)
• Installation method: M30×1.5, G1 1/2
• Transducer: Stainless steel or ABS engineering plastic
• Protection level: IP65 /IP67/IP68
• Explosion-proof grade: EXiaII BT4Gb (selected when ordering)

• Water and sewage treatment - pump house, collection well, biochemical reaction tank, sedimentation tank, etc.
• Electricity, mine-ash pool, coal slurry tank, butter storage tank, stockyard or part of mobile equipment control.
• Food industry - wineries, granaries, food materials, tanks, etc.
• Control system supporting use.
