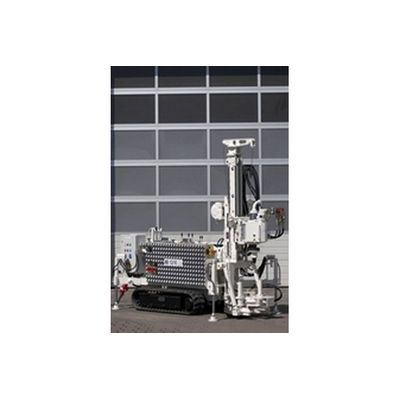

Model KB 13/1 E -Small-Type Drill Rigs
Transportation length: 2.855 mm. Transportation height: 1.900 mm. Transportation width: 780 mm. Weight: 1.860 kg. Power: 30 kW. Info: Electric engine for work in closed area.
- Dry drilling: Drilling diameter: 219 mm, Drilling depth: 20 m
- Direct rotary drilling: Drilling diameter: 150 mm, Drilling depth: 60 m
- Down-the-hole-hammer drilling: Drilling diameter: 150 mm, Drilling depth: 60 m
- Anchor drilling: with hydraulic hammer HB 11A
Chassis
Hydraulic driven rubber crawler
Chassis length: 1.150 mm
Telescopically width 700 until 960 mm
Four mechanical supports, in front pivoted
Engine
Electric motor
Hydraulic system
Triplex- gear pump 30/30/15 l/min
Operating pressure: 200 bar
Hydraulic oil tank: 80 l
Drill mast
Mast length: 1.580 mm
mounted on auxiliary mast
Feeder system with hydraulic cylinder and flyer chain system `
Stroke: 700 mm
Feed force: 15 kN
Lifting force: 20 kN
Auxiliary mast
Axial drill mast adjustment: 600 mm
Lifting force: 40 kN
Pressing force: 24 kN
Fixing at base frame by swivel joint with lateral swivel range ± 90°
Hydraulic drill head
two gears by 48 l/min, 200 bar
Torque: 2.500 /460 Nm
Rotation speed: 60 Nm/300 rpm
Hydraulic lifting clamp
max. free passage: 219 mm
Lifting force: 75 kN
Stroke: 200 mm
Cartridges for all diameters of casings and drill rods
Hydraulic winch
max. pull force: 6 kN
Spool capacity: 40 m
Wire diameter: 7 mm
