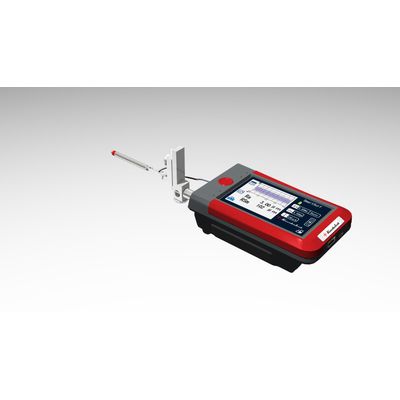

KosakaLab - Smart and Portable Surface Roughness Measuring Instruments

Portable surface roughness meter with extremely intuitive operation This measuring machine is suitable for measuring narrow and deep holes due to its compact detector.

Most popular related searches

precision monitoring system

machine monitoring

structural integrity

only in class　Integrated structure that fits in the palm of your hand
Smartphone feeling　Automatically adjust screen orientation
Right angle measurement with one touch
Smartphone feeling　Equipped with screenshot function
Stylus : 5μm 90° ※option　2μm 90°
Range of detection : 400/100/10μm
Resolution : 50/10/5nm
Driving distance : 25.5mm
Parameters : Ra、Rz、Rp、Rv、etc
External dimensions・mass : W152×D87×H81mm・Approximately500g
