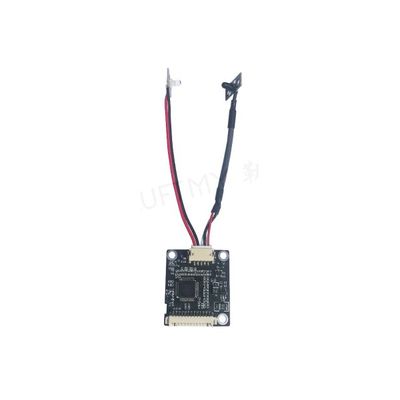

Luftmy - Model S7-L -Smart Dust Sensor

Application Benefits of S7-L Smart Dust Sensor for Vacuum Cleaners and Sweeping Robots:

The cleaning effect of the device and the cleanliness of the floors, carpets, bed sheets can be visually presented to the users through the sensor output data and the color display of LED;

The device controls the rotation speed of the motor in an intelligent way in accordance with the sensor data, in order to remain mute, conserve energy and power as well as prolong the life of the motor;

• The product takes use of the correlated and separated structure in emission and reception, with a small size, and is quite easy to be installed and used in various complicated conditions;
• The accuracy of motion measurement is high, and the minimum detected particle size is 10um at the wind speed of 12m/s;
• The measurement sensitivity is high, with the response time less than 0.6s;Wide measurement range: two measurement options of 0-999 and 0--9999;
• Low power consumption: operating current less than 30mA, and dormant current less than 0.5mA.
• The output interface contains the LED drive level with the particle concentration of seven colors composed of 3PIN.
• The data output interface of particle concentration: PWM and UART can provide accurate dust concentration data for vacuum cleaners, sweeping robots and other devices in real time.

• Vacuum cleaners
• Sweeping robots
• kitchen ventilators
• Intelligent detectors

• Brand：Luftmy
• Model：GDS07
• Country：China
• Signal Output ：PWM  UART
• Detection Principle：Infrared light scatting
• Detection Range：0.3~10μm
• Working Current：<20mA
• Standby Current：<0.1mA
• Storge Conditions：-20~80℃ ， 0~95% RH
