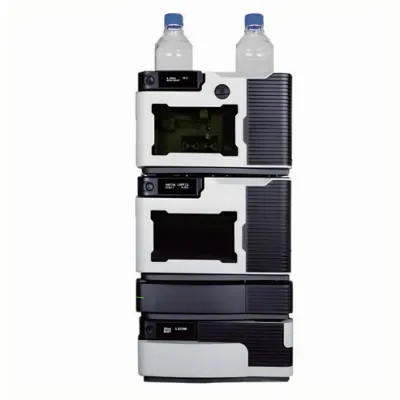

Nwspec - Model LC-8000 -Smart HPLC System

Infusion pump unit: Four-element low-pressure infusion pump

1. Maximum pressure resistance: 6000 psi (40Mpa)
2. Flow rate range: 0.001-10,000 mL/min (increment 0.001mL/min)
3. Flow accuracy: ≤0.06% RSD(ASTM)
4. Flow accuracy: ±0.2%
5. Pressure pulsation: ≤1%
6. Gradient accuracy: ±0.5%
7. Gradient repeatability: ≤0.1%
8. Online cleaning of plungers: Standard configuration, high/medium/low speed
9. Channel volume: Four-channel degassing function, 480 μ L/channel

Detector: Ultraviolet-visible detector

1. Wavelength range: 190-800 nm
2. Light sources: deuterium lamp, tungsten lamp
3. Spectral bandwidth: 8 nm
4. Wavelength accuracy: ±1 nm
5. Noise: ±0.35×10-5 AU (ASTM)
6. Drift: 1×10-4 AU/Hr
7. Wavelength accuracy: 0.2 nm
8. Linear range: >2.5AU (ASTM)
9. Maximum sampling rate: 100Hz
10. Pressure resistance of the flow cell: 1200PSI
11. Flow cell aperture: 10mm
12. Minimum detectable concentration: 4×10-9 g/mL

Sampler: Automatic sampler

1. Injection mode: Full-loop injection/Partial injection/micro-liter carrier injection
2. Quantitative loop volume: Standard configuration is 100 μL
3. Injection repeatability: Full-loop injection: RSD≤0.3%; Partial injection: RSD≤0.5%; micro-liter carryover injection: RSD≤1%
4. Sample capacity: 2 standard 48-position sample bottle racks, 1.5mL injection bottles (standard configuration)
5. (96-well plate and 384-well plate are optional)
6. Cross-contamination: < 0.005%
7. Linearity: 0.9999
8. Maximum pressure resistance: 6000psi (customizable)

Column oven

1. Temperature control range: Room temperature +5℃-70℃
2. Temperature accuracy: ±1.0℃
3. Temperature stability: ±0.1℃
4. Column capacity: 1 250mm chromatographic column (1 10mm guard column can be added)

Chromatographic column

Standard configuration: C8,250×4.6mm,5um

Chromatography workstation

1. Regulatory applicability: Complies with FDA 21 CFR Part11/GMP/GLP standards;
2. Ease of use: The graphical monitoring interface enables you to keep track of the device status at any time, making it simple and easy to use.
3. Data Processing: Powerful data processing capabilities, providing multiple integration functions and calculation methods;
4. Rich functions: Automatic peak width, automatic threshold algorithm, adaptive data collection, and automatic algorithm adjustment to achieve the best integration effect;
5. User Management: It features a powerful and comprehensive user management function, allowing for the setting of access permissions for convenient management. Different usage permissions can be set according to actual needs.
