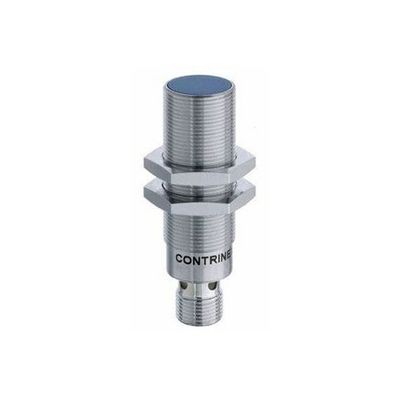

Contrinex - Model ISWE-M18MP-NSS-A0 -Smart Inductive Basic Sensor
Inductives Smart Sensor Basic-Smart-08-mm ISWE-M18MP-NSS-A0.
Most popular related searches
- Operating range : 0...8 mm
- Switching frequency max. : 500 Hz
- Supply voltage : 18...30
- Polarity : PNP
- Output : OSS1/IO-Link + OSS2
- Repeatability : < 0.006 mm
- Connection : M12 4-pin
- Housing size [mm] : M18
- Enclosure rating : IP 67
- Housing material : Chrome-plated brass
- Resolution : 4 µm
- Temperature range : -25...+70°C
- Sensor Height : 63.5 mm
- Mounting : Embeddable
- Interface : IO-Link
- Sensing range max. : 0...8.8 mm
