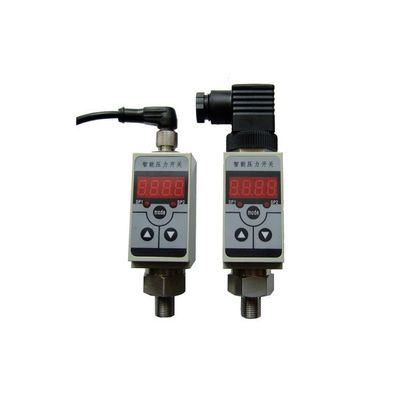

MANYYEAR - Model MPT304 -Smart Pressure Switch
The selection of load cell products must be fully communicated and detailed solutions must be obtained. This communication can better understand your needs, recommend more appropriate products and save a lot of structural cost and development time.
Most popular related searches
- Model MPT304
- Category: Pressure switch
- Range: ,-1bar-0-1000bar
- Temperature: ,-20 to 80c;
- Analog output: 0-5vdc, 4-20mA,RS485
- Control output: 1~4CH Relay/24VDC?220vac
- Application: digital pressure switch, smart pressure switch,water pressure switch, air pressure switch, oil pressure switch
- Measurement Range : -0.1...0~0.01...~100MPa
- Proof pressure : ≤1.5X rated pressure
- Pressure type : Gauge, absolute ,sealed gauge
- Accuracy : ±0.25%(typical) ±0.5%(Max.)
- Long stability : ±0.3%F.S/year
- Temperature Error- Zero : ±0.03%F.S/?(≤100KPa) ±0.02%F.S/?(>100KPa)
- Temperature Error -Span : ±0.03%F.S/?(≤100KPa) ±0.02%F.S/?(>100KPa)
- OperatingTemperatureRange : -20?~80?
- Storage Temperature Range : -40?~120?
- Power supply : 24VDC?220VAC
- Output signal : Analog output :4~20mA;Digital output :RS485
- Pressure port : M20×1.5 G1/2 or customize
- Relay control : 1~2 way relay control or electron switch value control
- Life of contact point : More than 100000 times
- Display : -1999~9999
- Housing material : 1Cr18Ni9Ti stainless steel
- Diaphragm material : 316L
- O ring : Fluororubber
- Cable : Polyethylene
- Insulation resistance : 100MΩ 100VDC
- Protection : IP65
