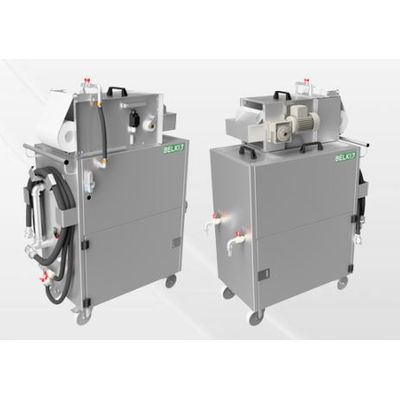

BELKI - Smart Unit
The BELKI Smart Unit is an efficient solution designed to remove tramp oil and clean cooling lubricants in machine sumps. To enhance its functionality, several accessories are available. Surface skimming devices are utilized to eliminate tramp oil from the liquid's surface. For sediment and solid collection, bottom suction devices are employed, ensuring a thorough cleaning process. Surface skimmers are securely mounted using a variety of brackets, providing flexible solutions for different applications. Hose connections to the BELKI Smart Unit are streamlined with Camlock couplings for quick and easy setup. Additionally, a magnetic filter option is available for ultra-fine filtration of ferritic particles, this feature augments the deep bed filter's efficiency by cleaning the cooling lubricants prior to oil separation in the oil separator. Different cup and filter suctions are available for varying tank sizes and fluid skimming applications, providing adaptability and precision in coolant maintenance.
Application of a BELKI Smart Unit
The BELKI Smart Unit is used to separate particles and tramp oil from process fluids - primarily cooling lubricants. It is a mobile unit that can be easily moved between the individual machine tools. Due to its slim design and the low demands on the electrical supply, this unit is suitable for almost any metal working work shop.
The process fluid is skimmed off by one of the skimming devices of the BELKI Smart Unit, or with a suction device to filter the bottom of the machine sump. The particles are separated via the deep bed filter, the tramp oil is separated via the integrated oil separator. Even the finest ferritic particles can be retained by the optional magnetic filter. The separated oil is stored in an inner tank, the particle load is fed into a sludge box and the used filter paper is automatically wound up. The cleaned emulsion is returned to the machine sump.
- Oil separation and filtration in one operation
- Highly mobile and easily adjustable for optimum results
- Power connection via 230 V / 50 Hz connection
- Robust pump for chips up to approx. 4 mm
- An optional magnetic filter ensures that even very fine particles can be filtered out of the emulsion.
- A very effective oil separator increases the lifetime of the emulsion
