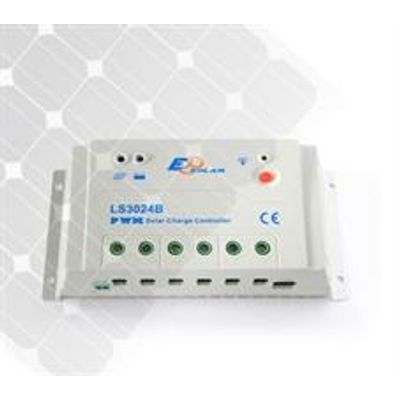

Model LS-B Series -Solar Charge Controller

FromNingbo Zhenhai Geebo Electronics Technology Co., Ltd.

LS-B series is new generation programmable solar charge controller. All the models adopt aluminum heat sink which enables the reliability in high temperature enviroments.RS-485 connects to a remote

Most popular related searches

solar charge control

solar charge controller

Features:

·Three system voltage configuration : 12V, 24V or 12V/24V auto work
·High efficiency PWM charging with temperature compensation
·3 LEDs shows PV charging, battery and load status
·External temperature sensor interface
·RS-485 bus communication
·Open standard Modbus communication protocol
·Software update function

More powerful function via MT50 or PC

Diversified load control modes : Manual, Light ON/OFF, Light ON+ Timer, Time Control
Battery type selection: Gel, sealed, flooded and User type
Real-time monitor
Programmable parameters
LVD or SOC load disconnect function
Energy statistics function

Electronic Protections：

PV short circuit
PV reverse polarity
Battery overcharge
Battery over discharge
Battery reverse polarity
Load short circuit
Load overload
Overheating

Model LS-B Series -Solar Charge Controller

Details:
