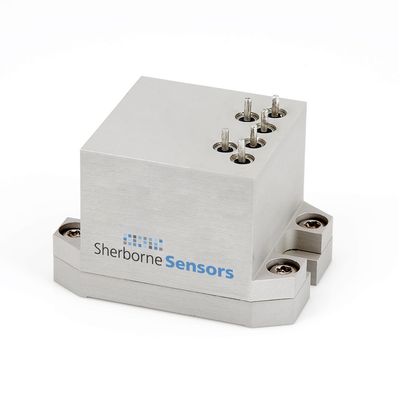

Sherborne Sensors - Model A545 Series -Solid State Accelerometers
The A545 range of Solid State Accelerometers measure vector acceleration with high accuracy and incorporate a MEMS micromachined piezo-resistive strain gauge bridge silicon sensor, incorporating a gas damping and positive over-range stops. Available ranges are from ± 2 to ± 200g.
Most popular related searches
data acquisition system
strain gauge
strain gauge sensor
accelerometer
silicon sensor
accelerometer measurement
vibration monitoring
strain sensor
- Output : Voltage
- G Range : 0.1g, 0.25g, 0.5g, 10g, 1g, 20g, 2g, 5g
- Termination : Connector, Pin
- Resolution : .005%, 0.0005%
- Unlike fluid damped devices, the gas damping employed in the MEMS micromachined piezo-resistive strain gauge bridge sensor is essentially independent of temperature. The accelerometer also incorporates positive mechanical stops conferring excellent shock resistance and is compensated for the effects of temperature on both sensitivity and zero offset. The accelerometer is packaged in a robust aluminium alloy case with solder pins for ease of electrical connections.
- Data acquisition systems
- Crash recorders
- Fatigue life monitoring and prediction
- Monitoring and controlling deceleration in mass transit systems
- Road bed analysis and fault detection equipment for high speed railways
- Civil flight simulators
- Autopilots
- Low frequency vibration monitoring.
