Atlas Incinerators ApS

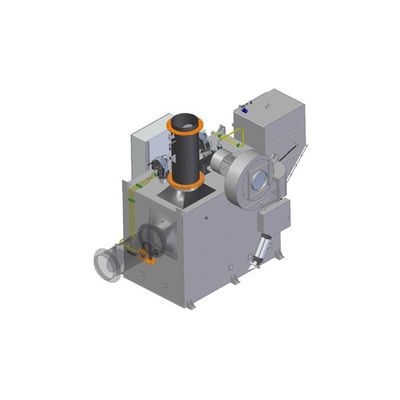

Atlas - Model 400 S WS -Solid Waste Incinerator

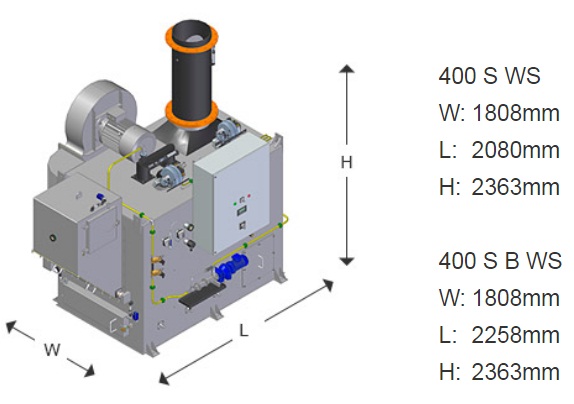

The 400 S (B) WS is the second most compact solution for burning solid waste only, available with either a 30L or 70L (waste bag) sluice size, and suitable for offshore supply vessels.
Most popular related searches
solid waste incineration
waste incineration
incineration
incinerator
sludge oil incineration
sludge oil
incineration waste
waste combustion
sludge waste incineration
sludge oil incinerator
- Combustion Capacity (kW) : 465
- Combustion Capacity (kcal/h) : 400.000
- Combustion Capacity Solid Waste (IMO waste specification) : 70 kg/h max. 280 kg/24 hours

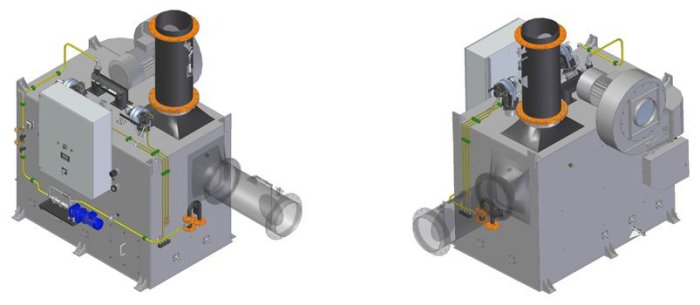

In case of height restrictions in the incinerator room we can offer the 400 type incinerator with the outlet in the side as shown below.
- Induced draught air ejector for evacuation of flue gasses; hence Flue Gas Fan is not required
- Settling tank not necessary
- Burning oil sludge with up to 50% water without pilot fuel
- Three chambered design - clean burn
- Atlas designed sludge burner with no rotating parts
- Simultaneous burning of sludge oil and solid waste
