Solid Waste Sorting Line
The solid waste sorting line is designed to recover recyclables from a stream of municipal waste using a manual sorting system. It serves to re-use valuable recyclables and reduce the volume of waste stream to be landfilled. The lines for garbage sorting can be set up in many different ways according to the composition of `raw material` that can vary from country to country, the cost of energy, cost of man power and other parameters we took under consideration case by case.
Material to be processed is loader fed into a charging channel, from which it is transported by channel conveyor onto an elevating conveyor There is a magnetic separator mounted over the elevating conveyor’s dischargeend to separate metal recyclabes. A screening device (drum screen) is designed to separate the small waste fractions before the main separation is performed.

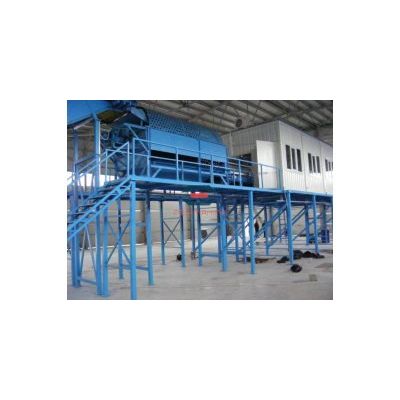

From the screening device the waste fraction greater waste is fed onto the sorting conveyor and transported through the sorting compartment on the sorting platform accommodating sorter personnel, waste sorting is performed manually by picking out recyclables from the stream of waste on the sorting conveyor.
Recovered recyclables are dropped into appropriate segregated collection containers located underneath the platform. The conveyor speed is set individually for each drive using a frequency inverter, according to the kind of waste being processed. The sorting platform includes a sorting compartment designed to improve working conditions for the staff.
Baling pres are full automatic and feeded by conveyor. Pet perforator is optional device.
Also Shredder can be produced optionally.
