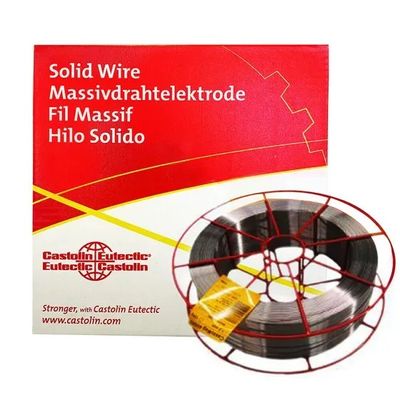

Castolin Eutectic CastoMag - Model 45267 -Solid Wire Electrode for Fine-Grained High-Strength Steels
Solid wire for welding high-strength steels (up to 700 MPa) used in highly stressed parts of welded structures. The high-strength weld metal is alloyed with NiMnCrMo. Designed for use at temperatures between -20°C and 350°C.
Most popular related searches
Standards:
- EN ISO 16834-A: G 69 4 M21 Mn3Ni1CrMo
- AWS A5.28: ER110S-G (ER100S-G)
- W.-Nr.: ~1.8939
Mechanical Properties (in the welded state, at 20°C):
Property: Typical Value
- Yield Strength Rp0.2 (N/mm²) | 750
- Tensile Strength Rm (N/mm²) | 800
- Elongation A5 (%) | 19
- Impact Energy Av ISO-V (-40°C) (J) | 70
Shielding Gas:
- Recommended Gas: Ar – 18% CO2 [ISO 14175 - M21]
- Alternative Gas: Ar – 2% CO2 – Rest Ar [ISO 14175 - M12]
Approvals: TÜV, DB, CE
Application Areas:
- For joining quenched and tempered fine-grained high-strength steels such as:
- S460N to S690N
- S500W to S690W
- S500M to S690M
- For wear-resistant steels of the following brands:
- N-A-XTRA 56 to N-A-XTRA 70
- HARDOX
- CREUSABRO
- DILLIDUR
Preparation:
- Remove contaminants, cracks, and worn metal from the welding area. Bevel the joints with V-, U-, or X-profiles according to the thickness.
Preheating:
- Preheating depends on the carbon equivalent of the steel as well as the size, thickness, and geometry of the workpiece. Castolin Eutectic recommends:
- CE < 0.2: Preheating not required.
- CE 0.2 - 0.4: Preheating 100-200°C
- CE 0.4 - 0.8: Preheating 200-350°C.
- Note that 12-14% Mn steels should never be preheated and that the workpiece temperature during welding should be kept below 250°C.
Welding:
- Current Type: = (+) [Electrode positive]
- Possible Welding Modes: Short-circuit transfer, axial spray arc welding, pulsed arc welding. To limit heat input, prefer welding in the air-pulsed arc mode. The interpass temperature should not exceed the preheating temperature.
Welding Parameters:
Wire Ø (mm) | Voltage (V) | Current (A) | Wire Feed (m/min) | Gas (l/min)
0.8 | 15-36 | 40-210 | 3-18 | 10
1.0 | 14-37 | 50-300 | 2-15 | 12
1.2 | 14-37 | 60-350 | 1.5-12.5 | 14
Welding Positions: PA, PB, PC, PD, PE, PF according to ISO 06947.
- Packaging: Reusable plastic spool S300 according to ISO 544
- Weight: 15 kg
- Available Wire Diameters: 0.8 mm; 1.0 mm; 1.2 mm
- Code: 766467
- Category: Unalloyed and low-alloyed
- Number in package: 15.0 kg
- Price per unit: €19.74 / kg
- Price excl. VAT: €296.10
- Price incl. VAT 23%: €364.20
- Availability: within 7 to 10 days
