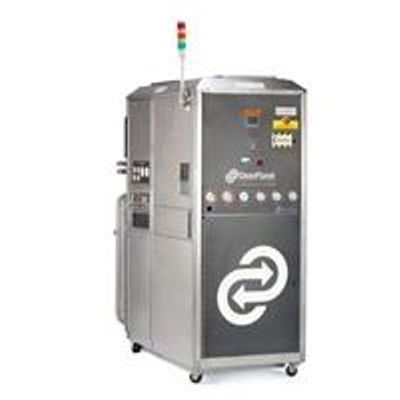

AlwaysClean - Model 150 -Solvent Recyclers
Advanced algorithms monitor 41 sensors to automatically recycle your waste. The AlwaysClean needs less than ten minutes a day of your attention. Internal, automated Quality Control technologies prevent any contamination or discoloring, and ensure you’re recovering as much material at the highest quality possible. Diagnostic data is continuously sent to our Athena web portal, enabling our engineers to monitor and optimize your recycler 24/7.
The standard two tote setup allows users to easily connect feed waste and automatically receive clean solvent from the AlwaysClean.
The AlwaysClean automatically deposits concentrated waste to an attached pallet of drums for easy disposal.
The system monitors & records input and output for analysis and regulatory compliance.
Tablet: Real-time, direct updates via the remote, on-premise, wall-mounted tablet.
From a Browser: The AlwaysClean connects to the web, transmitting operational data for immediate or historical analysis. CleanPlanet’s engineers monitor in real time to maximize up-time, production and optimize unit performance.
To a phone: User-configurable alerting via SMS text or Email includes adjustable reminders and “do not disturb” periods.
During operation, vapors are sealed in the AlwaysClean by its vacuum system and during waste discharge, the integrated VMX Vapor Management System routes hot solvent vapors from ejected waste directly back into the AlwaysClean, where they are condensed and reprocessed. Internal secondary containment of the liquid volume is continuously monitored.
Daily Rate:
- Input: 150-300 G (568-1,136 L)
- Output: 110-220 G (416-832 L)
Air
- Operation: 15 CFM @ 90 psi
Chilled Water
- 34,000 BTU/H (3 Ton, 10 kW)
- 30 GPM (115 LPM)
Overall Dimensions
- Height: 120” max (3,048 mm)
- Width: 35” (889 mm)
- Depth: 72” (1,829 mm)
- Base Area: 17.5 ft2 (1.625 m2)
Weight
- Unloaded: 1,500 lbs. (590 kg)
- Loaded: 2,000 lbs. (818 kg)
Electricity
- 480 V, 30 Amps,
- 3 Phase, 50/60 Hz
Controls
- Keypad | LCD screen
- User interface
Nitrocellulose Package (Option)
- Auto-quench system requires
- water hose connection
Ports
- 2 Feed Ports, 2 Clean Ports
- 2 Still Bottom (Waste) Ports
Certification
- Certified to UL2208, UL1203,
- UL913, UL467, UL580A, NFPA70,
- NFPA496 for use in Class 1
- Division 1 Groups C&D environments. T2A 280C.
Vapor Management
- VMX Vapor Management System
