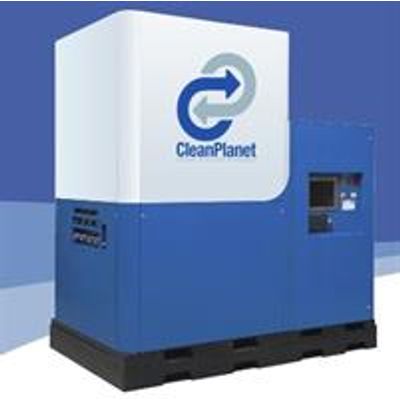

AlwaysClean - Model 1000 -Solvent Recyclers
PrecisionDistillation makes it easy. Advanced algorithms monitor 73 sensors to automatically recycle your waste. The AlwaysClean needs less than ten minutes a day of your attention. Internal, automated Quality Control technologies prevent any contamination or discoloring, and ensure you’re recovering as much material at the highest quality possible. Diagnostic data is continuously sent to our Athena web portal, enabling our engineers to monitor and optimize your recycler 24/7.
The standard two tote setup allows users to easily connect feed waste and automatically receive clean solvent from the AlwaysClean.
The AlwaysClean automatically deposits concentrated waste to an attached pallet of drums for easy disposal.
The system monitors & records input and output for analysis and regulatory compliance.
On the Unit: Real-time, direct control via the attached 17” full-color user interface and keyboard.
From a Browser: The AlwaysClean connects to the web, transmitting operational data for immediate or historical analysis. CleanPlanet’s engineers monitor in real time to maximize up-time, production and optimize unit performance.
To a phone: User-configurable alerting via SMS text or Email includes adjustable reminders and “do not disturb” periods.
The AlwaysClean has been designed for “Full Containment”. During operation, vapors are sealed in the AlwaysClean by its vacuum system and during waste discharge, the integrated VMX Vapor Management System routes hot solvent vapors from ejected waste directly back into the AlwaysClean, where they are condensed and reprocessed.
Internal secondary containment of the full liquid volume is continuously monitored.
Daily Rate:
- Input: 900-1,200 G (3,400-4,540 L)
- Output: 800-1,150 G (3,030-4,350 L)
Air
- Operation: 2-5 CFM@ 90 psi
- Startup: 20 CFM @ 90 psi
Chilled Water
- 276,000 BTU/H (23 Ton, 80 kW)
- 100 GPM (380 LPM)
Overall Dimensions
- Height: 180” (457cm)
- Width: 144” (366cm)
- Depth: 96” (244cm)
- Base Area: 96 ft2 (8.9m2)
Weight
- Unloaded: 30,000 lbs. (13,607 kg)
- Loaded: 35,000 lbs. (15,875 kg)
Electricity
- 480 V, 100 Amps,
- 3 Phase, 50/60 Hz
Controls
- 17” LCD Interface and full
- keyboard
Vapor Management
- VMX Vapor Management System
Certification
- Certified to UL1203, UL913,
- UL467, UL580A, NFPA70,
- NFPA496 for use in Class 1
- Division 1 Groups C&D environments.
- T2 300.
Communications
- Internal 802.11n & 4G-LTE
Containment
- Full internal liquid containment
- Electronically monitored
Ports
- 2 Feed Ports, 2 Clean Ports
- 7 Still Bottom (Waste) Ports
- 1 Separation Drain Port
Nitrocellulose Package (Option)
- Auto-quench system requires
- water hose connection
