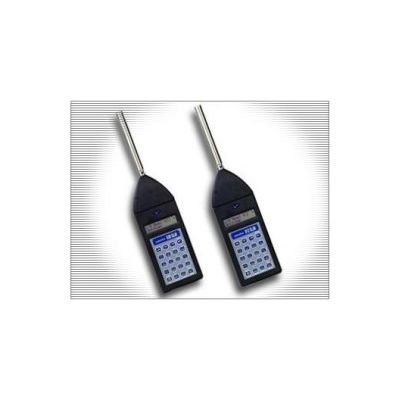

Model 820 -Sound Level Meter
There exists a need to select an instrument that will do just what you need it to do. The 820 was designed with this in mind. The Model 820 is the perfect environmental noise analyzer, maintaining all of the features of the 812 but with added memory, modem capability, daily and exceedance histories.
The1/2" condenser microphones used with our Model 820 allow for a wider dynamic range and greater level of accuracy. The Models 812 and 820 meet the IEC and ANSI requirements for Type 1, Precision Integrating Sound Level Meters.
Fundamental to each of these instruments is an integrating sound level meter. Each features true RMS and dual Peak detectors that operate simultaneously. Each has Slow, Fast, and Impulse detector rates. Each has A and C frequency weighting filters.
- ANSI/IEC Type 1 integrating SLM
- 110 dB dynamic range
- Long Term logging capabilities: Interval, Time, Daily and Event histories (820 only)
Statistics - user selectable 6 Ln values - Slow, Fast and Impulse Detectors
- True RMS with two separate Peak detectors
- A & C weighting
- Condenser microphone - extension cables up to 20 feet available
- 64K bytes of memory (812) / 256 K bytes of memory (820
- AC/DC Output
- RS-232 Interface
- Remote communications via modem (820 only)
- Sound Level Measurements
- Community Noise Assessment
- Environmental Noise Monitoring
- Statistical Analysis
- Transportation Noise/Passby Measurement
- Sonic boom/artillery fire measurements
- Production Line Testing
- Remote Outdoor Noise Monitoring (Model 820)
