Apex -Â Model XC-572 -Source Sampling Console

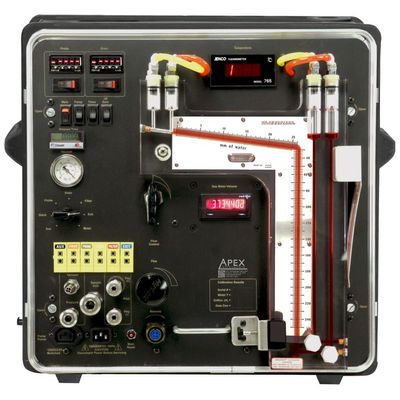

The XC-572 Source Sampling Console is the metric version of the XC-523. It is a full-featured, compact, and lightweight Isokinetic Source Sampler. It has all the great features you want and the reliability you need. Field set up is easy with non-reversible external pump connections and the industry standard 4-pin electrical connector. (External sample pump sold separately). Console allows operators to monitor gas velocities, temperatures, pressures, and sample flow rates for maintaining isokinetic sampling conditions. All applicable components are rated 120V / 60Hz or 240V/50Hz.
- Precision gas meter with orifice
- Rugged and lightweight roto-molded linear low-density polyethylene (LLDPE/LMDE) case with two molded-in ergonomic carrying handles
- Low-cost manual console
- Easy operation and maintenance
- Rugged, lightweight, stackable case
- Removable 19-inch front panel
- Carry strap for easy transport
- Non-reversible sample pump connections
- Color-coded thermocouple jacks
- Bright, easy-to-read temperature displays
- Easy-leveling dual-column manometer
- Stainless steel quick connects and fittings
- Convenient layout for manual data recording
Dry Gas Meter:
- Model SK25EX
- Multi-chamber positive displacement
- Qmax: for air 4.1m3/h at 220 Pa
- Qmin: 0.26 L/min resolution 0.002 Liter
- Cyclic volume: 0.7L
- 41 LPM max
- Volume display via mechanical index
- Accuracy: 1.5% at volumes greater than 10 liters
- Type-K thermocouple for exit temperature
Manometer:
- Inclined/Vertical manometer for determining stack velocity and sample flow rate
- Inclined range of 0-26 mm H2O with a resolution of 0.2 mm
- Vertical range of 26-250 mm H2O with 2 mm divisions
- Fabricated from solid acrylic, precision-bored, accurate to +/- 1%
- Convenient self-sealing chrome plated brass quick connects with Viton O-rings
- Supplied with plastic plugs for a positive secondary seal
Temperature Display:
- Panel mount digital thermometer
- Bright red LED display
- Type-K thermocouple with Range -105°C to 1372°C
- Separate 7 channel selector switch
Temperature Controllers- Probe and Oven:
- Programmable thermocouple type
- Range 0°C to 1200°C
- Digital setting by 3 keys with lock function
- NEMA 4X/IP66 equivalent waterproof faceplate
- Large red 4-digit LED display
- Alarm output capable
Vacuum Gauge: dual-scale, 0-30inHg / 0-100kPa
Sample Pump Connections: 3/8-inch non-reversible, stainless-steel quick connects
Umbilical Connections:
- Sample inlet: 1/2-inch stainless steel quick connect
- Pitot lines: 1/4-inch stainless steel quick connect
- Electrical: 5 Pin female bayonet PT series Amphenol circular connector
- Thermocouples: quantity 6 type-K inputs, standard size
Power: 120VAC at 60Hz standard (240VAC at 50Hz optional), IEC C14 male receptacle
Dimensions: 23” x 21” x 12” (58cm x 53cm x 30cm), 19-inch panel
Weight: 40 lbs (18kg)
- Weight: 50 lbs
- Dimensions: 25 × 17 × 25 in
