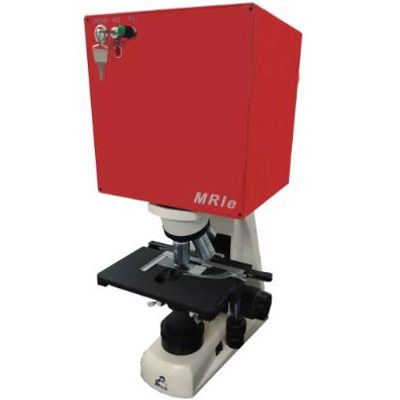

ProTrusTech - Model MRIe -Spectrometer
MRIe can choose different laser wavelengths according to different applications. It could be micro Raman or micro PL, for example, 535~1100nm PL or 79 ~3500 cm-1 @532 nm laser. The spot of laser on sample should be 0.3 mm. MRIe is extremely versatile for various kinds of samples, such as solid, liquid, powder, thin film, paste, gel, diamond and gem.
The power of Laser could be controlled by software, at 1 mW/step for RGB Lasersystems, one of the major laser brands used in MRID. In addition, laser power could be reduced by a round continuously variable neutral density filter (O.D 2.0~0.04) that is also controlled by software with high precision. That means the minimum power of laser can reduce to 0.01 mW
GMDX could be customized called GMDXc which incorporates special cooling CCD systems that permits continuous operation without thermal noise, it could be provided to many advantages features as high stability, high sensitivity, high-speed acquisition and low noise.
