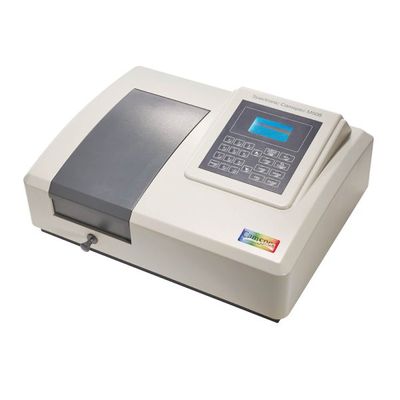

CamSpec - Model M108 -Spectrophotometer
Single beam Visible M108 spectrophotometer with 2nm bandpass. Easy to operate, intuitive instrument. Wipe-clean LCD liquid crystal display and membrane keypad, ideal for laboratories that are hard to keep clean. Built in large memory to store up to 200 test modes. Large range of accessories for laboratory automation and specific tests. Complies with UKCA and CE requirements for safety and ESD/EMC emission and susceptibility. Calibrated in the UK by qualified engineers using international standards for wavelength, absorbance, resolution and stray light.
Most popular related searches
single beam visible spectrophotometer
spectrophotometer
visible spectrophotometer
single beam spectrophotometer
potassium test
cell holder
beam grate
laboratory automation
chloride test
photometric
Operating Modes
- Basic Mode (Abs, %T, Conc)
- Quantitative (concentration calibration curves)
- Wavelength Scanning (when connected to and controlled by PC)
- Kinetics (including timedrive)
- Multi-wavelength
- Performance Validation
Software and PC Control
- Local control with sealed, solvent resistant keypad
- Remote control via PC CamSpec K3 Analyst application software
- USB output for the transfer of results
Pharmacopoeias
The CamSpec M108 passes the following pharmacopoeia tests:
- Potassium Chloride stray light test
- Toluene in Hexane resolution test
- Holmium Perchlorate solution wavelength test
- Potassium Dichromate absorbance test
- Display : Two-line, 9-digits
- Light Source : Tungsten Halogen
- Monochromator : Single beam, grating system 1200 lines/nm
- Detectors : Silicon Photodiode
- Wavelenth Range : 325-1100nm
- Wavelength Accuracy : ±2nm
- Wavelength Repeatability : ≤1nm
- Wavelength Display : 1nm
- Stability : ±0.002A/hr@500nm
- Sample Compartment : Accommodates 100mm path length cuvette with optional holder
- Standard Cell Holder : 4 position 10mm cell changer
- Software : K3 Analyst, optional
- Zero Drift : <0.003A per hour after warm up
- Bandpass : 2nm
- Stray Light : <0.2%T@220nm and 360nm
- Photometric Accuracy : ±0.5%T
- Photometric Range : 0-125%T, -0.097-1.999A, 0-1999C (0-1999F)
- Printer Interface : Bluetooth
- Computer Interface : USB for PC control and USB for data export
- Power Requirements : 90V-250V AC, 50Hz/60Hz
- Instrument Dimensions (lxwxh) : 510x420x210
- Instrument Weight : 11.7kg
- Shipping Dimensions (lxwxh) : 650x550x390mm
- Shipping Weight : 13.5kg
