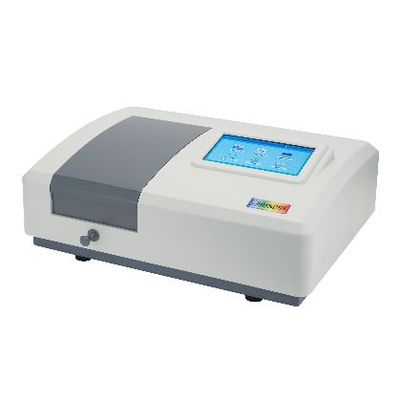

CamSpec - Model M509T -Spectrophotometer
Single beam scanning UV-Vis M509T spectrophotometer with 2nm bandpass designed for research and routine use. Sealed, solvent-resistant colour touchscreen with accessible large icons. Remote control via PC software. USB interface for transfer of results. Large range of accessories for laboratory automation and specific tests. Complies with UKCA and CE requirements for safety and ESD/EMC emission and susceptibility. Calibrated in the UK by qualified engineers using international standards for wavelength, absorbance, resolution and stray light.
Most popular related searches
single beam UV-VIS
single beam UV-VIS spectrophotometer
UV-VIS spectrophotometer
scanning UV-VIS spectrophotometer
spectrophotometer
spectrophotometer uv
potassium test
cell holder
beam grate
laboratory automation
Operating Modes
- Basic Mode (Abs, %T, Conc)
- Quantitative (concentration calibration curves)
- Wavelength Scanning
- Kinetics (including timedrive)
- DNA/Protein
- Multi-wavelength
- Performance Validation
Software and PC Control
- Local control with sealed, solvent resistant colour touchscreen
- Remote control via PC CamSpec K3 Analyst application software
- USB output for the transfer of results
Pharmacopoeias
The CamSpec M509T passes the following pharmacopoeia tests:
- Potassium Chloride stray light test
- Toluene in Hexane resolution test
- Holmium Perchlorate solution wavelength test
- Potassium Dichromate absorbance test
- Display : 7" touch screen
- Light Source : Tungeten Halogen and Deuterium Lamp
- Monochromator : Single beam, grating system 1200 lines/nm
- Detectors : Silicon Photodiode
- Wavelenth Range : 190-1100nm
- Wavelength Accuracy : ±0.8nm
- Wavelength Repeatability : ≤0.2nm
- Wavelength Display : 1nm
- Stability : ±0.002A/hr@500nm
- Sample Compartment : Fits 100mm path length cuvette with optional holder
- Standard Cell Holder : 4 position 10mm cell changer
- Software : K3 Analyst, optional
- Zero Drift : <0.003A per hour after warm up
- Bandpass : 2nm
- Stray Light : <0.2%T@220nm and 360nm
- Photometric Accuracy : ±0.5%T
- Photometric Range : 0-125%T, -0.097-1.999A, 0-1999C (0-1999F)
- Printer Interface : Bluetooth
- Computer Interface : USB for PC control and USB for data export
- Power Requirements : 90V-250V AC, 50Hz/60Hz
- Instrument Dimensions (lxwxh) : 510x420x210
- Instrument Weight : 12.3kg
- Shipping Dimensions (lxwxh) : 650x540x370mm
- Shipping Weight : 16.0kg
